Schmersal 103025866 AZM201Z-ST-T-AS-P Solenoid Interlock with AS-Interface, 40 mm x 220 mm x 50 mm
- MPN: 103025866
- PPN: SCM-103025866
CAD
$1428.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM201Z-ST-T-AS-P Solenoid Interlock with AS-Interface, 40 mm x 220 mm x 50 mm
Features
- Thermoplastic enclosure
- High holding force 2000
- 40 mm x 244 mm x 50 mm
- Interlock with protection against incorrect locking.
- Double-insulated
- Long life
- Integrated AS-Interface
- Solenoid interlock with integrated AS-i Safety Interface
- Universal repeatedly teachable or individual coding because of the RFID technology
- I-variants with coding level HIGH to ISO 14119
Documentation & Downloads
Specifications
Electrical data
- Time to readiness, maximum
- 4,000 ms
Switching frequency, maximum1 Hz
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-7.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Outputs, DO 1
- No Function
- AS-i Outputs, DO 3
- No Function
- AS-i Parameter bits, P1
- Solenoid interlock locked
- AS-i Parameter bits, P3
- Internal device error (FID)
- AS-i Input module address
- 0
AS-i VersionV 3.0
AS-i, IO-Code0x7
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0Solenoid control
AS-i Outputs, DO 2No Function
AS-i Parameter bits, P0Safety guard and actuator detected
AS-i Parameter bits, P2Magnet voltage in tolerance range
Note (AS-i Parameter bits)FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

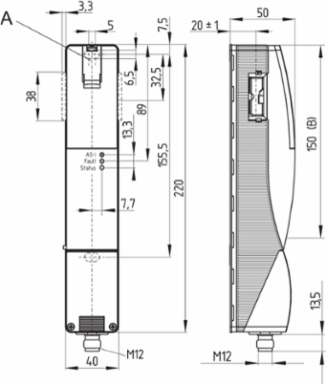

Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 220 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- AS-Interface +
- PIN 3
- AS-Interface -
PIN 2Aux - (P)
PIN 4Aux + (P)
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Triangular key for AZM 201
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
General data - Features
- Power to unlock
- Yes
- Latching
- Yes
- Safety functions
- Yes
- Number of actuating directions
- 2
Solenoid interlock monitoredYes
Manual releaseYes
Integral system diagnostics, statusYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Reaction time, maximum
- 100 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight537 g
Duration of risk, maximum200 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - AS Interface
- Rated operating voltage
- 26.5 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum100 mA
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 1.81 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value1.59 x 10⁻⁴
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Safety classification - Guard locking function
- Performance Level, up to
- e
Note (Performance Level)Information for the safety classification of the guard locking function is documented in the "Operating instructions" or in the "Operation and mounting" instructions.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Note (clamping force F
- 1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
- Note (clamping force F
- 1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
- Actuating speed, maximum
- 0.2 m/s
- Tightening torque of the fixing screws, maximum
- 8 Nm
- Tightening torque of the fastening screws for the housing cover, maximum
- 1 Nm
Holding force F2,000 N
Holding force F2,600 N
Latching force30 N
Type of the fixing screws2x M6
Tightening torque of the fastening screws for the housing cover, minimum0.7 Nm
NoteTorx T10
Accessory
- Recommendation (actuator)
- AZ/AZM201-B1 | AZ/AZM201-B30
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW | FCC | IC
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
Current consumption500 mA
Status indication
- Note (LED switching conditions display)
- Status and diagnostics: Transmitter + receiver | (2) LED red: Internal device error | (3) LED yellow: Device condition
