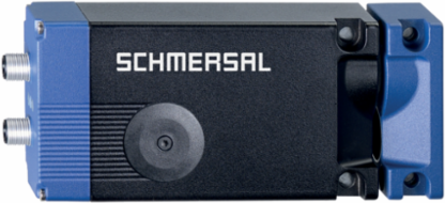

Schmersal 103015312 AZM400 Solenoid Interlock, Rated Voltage 24 VDC, 10,000 N Holding Force

  • MPN: 103015312
  • PPN: SCM-103015312

CAD

$1320.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

AZM400 Solenoid Interlock, Rated Voltage 24 VDC, 10,000 N Holding Force

Features

  • Universal coding with RFID technology
  • 2 Connector M12, 8- and 5-poles
  • Guard locking monitored
  • 2 Diagnostic outputs
  • With securing holes for Bowden cable assembly
  • Electric manual release with auxiliary voltage
  • Bistable, motor-driven system
  • Clamping force 10.000
  • Release possible against lateral forces up to 300 N
  • PL e / cat. 4 / SIL 3 for interlocking and guard locking function
  • Two-channel input signal of the guard locking function
  • Operation on P/P- and P/N-switching outputs
  • High tolerance to door misalignment

Documentation & Downloads

Specifications

Electrical data

Operating voltage24 VDC -15 % / +10 % (stabilised PELV power supply)
No-load supply current I100 mA
Operating current50 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum0.3 Hz
Minimal average cycle time (with continuous operation)20 s
Current consumption, maximum600 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Time to readiness, maximum1,500 ms
Open / close cycle (motor), minimum3

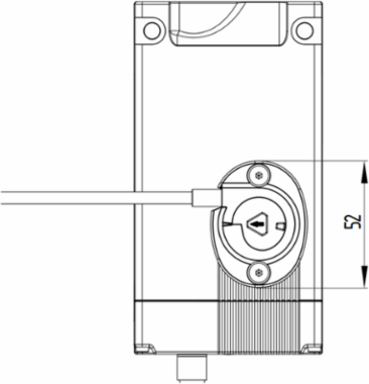

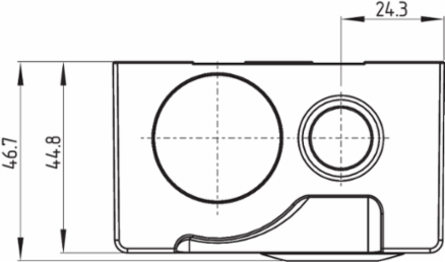

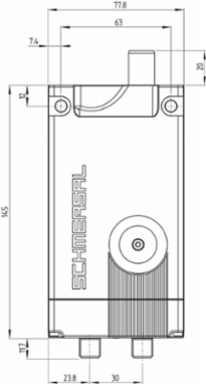

Mechanical data - Dimensions

Length of sensor46.7 mm
Height of sensor156.7 mm
Width of sensor77.8 mm

Pin assignment

ConnectionConnector 1
PIN 2E1 Control input 1
PIN 4Y1 Safety output 1
PIN 6E3 Control input 3
PIN 8E2 Control input 2
PIN 1A1 Supply voltage UB
PIN 3A2 GND
PIN 5FE (functional earth connection)
PIN 1OUT2 Diagnostic output 2
PIN 3n.c.
PIN 5OUT1 Diagnostic output 1
PIN 7Y2 Safety output 2

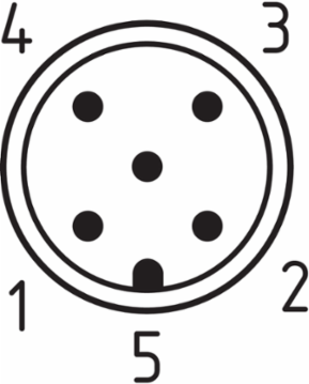

ConnectionConnector 2
PIN 2H2 GND
PIN 4H1 Auxiliary voltage Uhe

Ambient conditions - Insulation values

Rated insulation voltage U32 VDC
Overvoltage categoryIII
Rated impulse withstand voltage U0.8 kV
Degree of pollution3

Scope of delivery

Scope of deliveryThe actuator and the Bowden cable are not included in delivery. | Note: Versions AZM400Z-...-BOW may only be used in connection with Bowden cable release ACC-AZM400-BOW-.M-.M, which is available as an accessory. Use without the Bowden cable release fitted is not permissible.

General data - Features

Solenoid interlock monitoredYes
Short circuit detectionYes
Securing holes for Bowden cable assemblyYes
Integral system diagnostics, statusYes
Number of safety contacts2
Electronic manual releaseYes
Cross-circuit detectionYes
Safety functionsYes
Number of diagnostic signals2

General data

StandardsEN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
Coding level according to EN ISO 14119Low
Frequency band RFID125 kHz
Enclosure materialLight alloy die-casting
Reaction time, switching off safety outputs via actuator, maximum100 ms
CodingUniversal coding
Working principleMagnetic field | RFID
Transmitter output RFID, maximum-6 dB/m
Gross weight860 g

Safety classification

StandardsEN ISO 13849-1 | EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputsY1 and Y2
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.25 A
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum0.5 ms
Classification ZVEI CB24I, SinkC1 | C2
Rated operating current (safety outputs)250 mA
Voltage drop U2 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC2

Safety classification - Interlocking function

Performance Level, up toe
PFH value1.00 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in3
Category4
PFD value9.00 x 10⁻⁵
Mission time20 Year(s)

Electrical data - Control inputs Guard locking function

Switching thresholds of the control inputs−3 V … 5 V (Low) | 15 V … 30 V (High)
Classification ZVEI CB24I, SourceC1 | C2 | C3
Current consumption at 24V, maximum10 mA
Classification ZVEI CB24I, SinkC0
Current consumption at 24V, minimum5 mA
Allowable discrepancy time (input), maximum10 s

Ambient conditions

Degree of protectionIP67 | IP66
Storage and transport temperature, minimum-40 °C
Relative humidity, maximum93 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm
Protection classIII
Ambient temperature-20 ... +55 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m

Mechanical data - Connection technique

Termination2 connector M12, 8 and 5 pin., both A-coded

Electrical data - Diagnostic outputs

Designation, Diagnostic outputsOUT1 / OUT2
Voltage drop U2 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
NoteThe diagnostic output are not safety relevant outputs!

Safety classification - Guard locking function

Performance Level, up toe
PFH value1.80 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in3
Category4
PFD value1.60 x 10⁻⁴
Mission time20 Year(s)

Mechanical data

Interlocking principlebistable
Note (Mechanical life)Which have a lateral force Ftrans = 100 N: 100.000 operations
Minimum distance devices30 mm
Holding force F13,000 N
Note (Lateral force at bolt return)Does not apply to emergency exit, Bowden cable and manual release
NOTE_DESIGN_MOUNTING_SCREWProperty class min. 10.9
Tightening torque of the fixing screws Bowden cable1.2 Nm
Mechanical life, minimum1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum2 °
Holding force F10,000 N
Lateral force at bolt return, maximal (against locked door)300 N
Type of the fixing screws2x M6
Tightening torque of the screw8 Nm

Accessory

Recommendation (actuator)AZM400-B1

Approvals - Standards

CertificatesTÜV | cULus | FCC | IC

Status indication

Note (LED switching conditions display)Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
