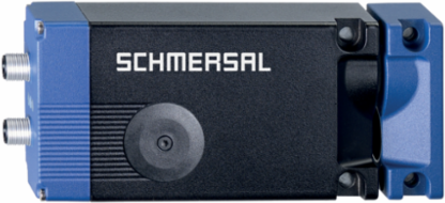

Schmersal 103003588 AZM400 Solenoid Interlock with Electric Manual Release, 10,000 N Holding Force, IP67

MPN: 103003588
PPN: SCM-103003588

$1165.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM400 Solenoid Interlock with Electric Manual Release, 10,000 N Holding Force, IP67

Features

Universal coding with RFID technology
2 Connector M12, 8- and 5-poles
Guard locking monitored
2 Diagnostic outputs
manual release
Electric manual release with auxiliary voltage
Bistable, motor-driven system
Clamping force 10.000
Release possible against lateral forces up to 300 N
PL e / cat. 4 / SIL 3 for interlocking and guard locking function
Two-channel input signal of the guard locking function
Operation on P/P- and P/N-switching outputs
High tolerance to door misalignment

Documentation & Downloads

Specifications

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
No-load supply current I	100 mA
Operating current	50 mA
External wire and device fuse rating	2 A gG
Switching frequency, maximum	0.3 Hz
Minimal average cycle time (with continuous operation)	20 s

Current consumption, maximum	600 mA
Rated operating voltage	24 VDC
Required rated short-circuit current	100 A
Time to readiness, maximum	1,500 ms
Open / close cycle (motor), minimum	3

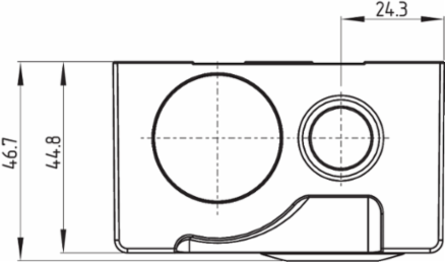

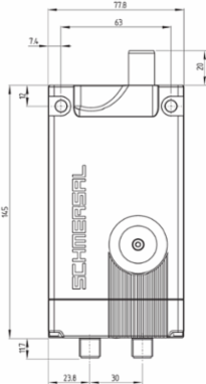

Mechanical data - Dimensions

Length of sensor	46.7 mm
Height of sensor	156.7 mm

Width of sensor	77.8 mm

Pin assignment

Connection	Connector 1
PIN 2	E1 Control input 1
PIN 4	Y1 Safety output 1
PIN 6	E3 Control input 3
PIN 8	E2 Control input 2
PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	FE (functional earth connection)

PIN 1	OUT2 Diagnostic output 2
PIN 3	n.c.
PIN 5	OUT1 Diagnostic output 1
PIN 7	Y2 Safety output 2

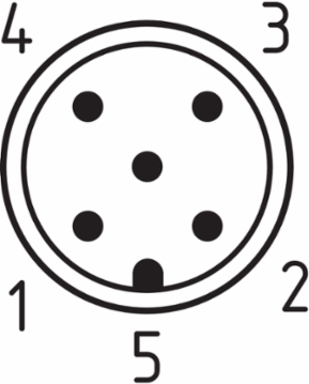

Connection	Connector 2
PIN 2	H2 GND
PIN 4	H1 Auxiliary voltage Uhe

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

General data - Features

Solenoid interlock monitored	Yes
Manual release	Yes
Cross-circuit detection	Yes
Integral system diagnostics, status	Yes
Number of safety contacts	2

Electronic manual release	Yes
Short circuit detection	Yes
Safety functions	Yes
Number of diagnostic signals	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	Low
Frequency band RFID	125 kHz
Enclosure material	Light alloy die-casting
Reaction time, switching off safety outputs via actuator, maximum	100 ms

Coding	Universal coding
Working principle	Magnetic field \| RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	692 g

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Design of control elements	short-circuit proof, p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	0.5 ms
Classification ZVEI CB24I, Sink	C1 \| C2

Rated operating current (safety outputs)	250 mA
Voltage drop U	2 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C2

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	1.00 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	9.00 x 10⁻⁵
Mission time	20 Year(s)

Electrical data - Control inputs Guard locking function

Switching thresholds of the control inputs	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Classification ZVEI CB24I, Source	C1 \| C2 \| C3
Current consumption at 24V, maximum	10 mA

Classification ZVEI CB24I, Sink	C0
Current consumption at 24V, minimum	5 mA
Allowable discrepancy time (input), maximum	10 s

Ambient conditions

Degree of protection	IP67 \| IP66
Storage and transport temperature, minimum	-40 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm
Protection class	III

Ambient temperature	-20 ... +55 °C
Storage and transport temperature, maximum	+85 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	2 connector M12, 8 and 5 pin., both A-coded

Electrical data - Diagnostic outputs

Designation, Diagnostic outputs	OUT1 / OUT2
Voltage drop U	2 V
Current, Utilisation category DC-12	0.05 A
Current, Utilisation category DC-13	0.05 A

Design of control elements	short-circuit proof, p-type
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Note	The diagnostic output are not safety relevant outputs!

Safety classification - Guard locking function

Performance Level, up to	e
PFH value	1.80 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	1.60 x 10⁻⁴
Mission time	20 Year(s)

Mechanical data

Interlocking principle	bistable
Note (Mechanical life)	Which have a lateral force Ftrans = 100 N: 100.000 operations
Minimum distance devices	30 mm
Holding force F	13,000 N
Note (Lateral force at bolt return)	Does not apply to emergency exit, Bowden cable and manual release
NOTE_DESIGN_MOUNTING_SCREW	Property class min. 10.9

Mechanical life, minimum	1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum	2 °
Holding force F	10,000 N
Lateral force at bolt return, maximal (against locked door)	300 N
Type of the fixing screws	2x M6
Tightening torque of the screw	8 Nm
