LED Background Light, 100 x 100 mm, 24 V, IP54, 3700 Lux
Balluff

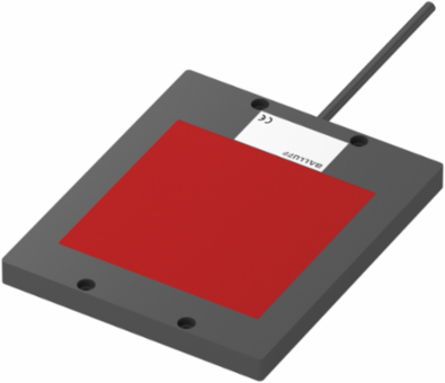

Balluff BAE LX-VS-HR100 LED Background Light, 100 x 100 mm, 24 V, IP54, 3700 Lux

  • MPN: BAE LX-VS-HR100
  • PPN: BAL-BAE000H

CAD

$1021.64

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminate your workspace with the Balluff LED Background Light, designed for efficiency and durability. This robust lighting solution features a 100 x 100 mm illumination area, delivering an impressive 3700 Lux at a distance of 0.1 meters, making it ideal for various industrial applications. Constructed with anodized aluminum and glass, it is built to withstand challenging environments with an IP54 rating, ensuring protection against dust and water splashes. Operating on a 24 V supply, this background light is equipped with a 55° beam angle and a maximum current draw of 416 mA, ensuring optimal performance in continuous operation. With its reliable digital inputs and compact design, this lighting unit is a perfect addition to enhance visibility in your workspace.

Documentation & Downloads

Specifications

Additional

Voltage
24 V
Beam Angle
55° x 55°
Illumination Area
100 x 100 mm
Material
Aluminum anodized black, Glass, PMMA
Ambient Temperature
-10 to 55 °C
Operating Mode
Normal (continuous)
Light Type
LED Red light
Wave Length
617 nm
Version
Background light
Current416 mA
Illuminance3700 Lux
Dimension130 x 9.5 x 155 mm
IP RatingIP54
Approval/ConformityCE, UKCA, WEEE
Digital InputsTrigger
Country of OriginGermany
ConnectionCable with M12x1-Male connector, 4-pin, 0.3 m
