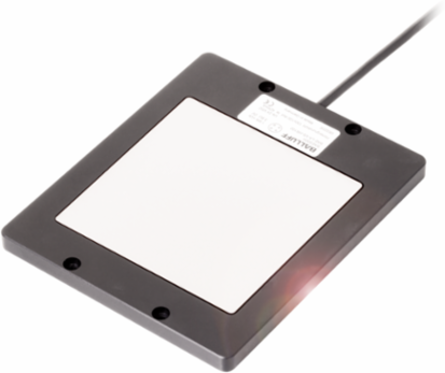

Background Light 100 x 100 mm LED Infrared, IP54, 24 V
Balluff

Balluff BAE LX-VS-HI100 Background Light 100 x 100 mm LED Infrared, IP54, 24 V

  • MPN: BAE LX-VS-HI100
  • PPN: BAL-BAE00FR

CAD

$1160.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminate your workspace with the Balluff LED Infrared Background Light, designed for optimal performance and durability. With an illumination area of 100 x 100 mm and a robust IP54 rating, this background light ensures reliable operation even in challenging environments, withstanding ambient temperatures from -10 to 55 °C. Its sleek aluminum anodized black finish and compact dimensions of 130 x 9.5 x 155 mm make it a stylish yet functional addition to your setup, while the 875 nm wavelength provides effective infrared lighting. Equipped with a 4-pin M12x1 male connector for easy installation, this background light is perfect for continuous operation, delivering a maximum current draw of 500 mA at a rated voltage of 24 V.

Documentation & Downloads

Specifications

Additional

Illumination Area
100 x 100 mm
Voltage
24 V DC
Dimensions
130 x 9.5 x 155 mm
IP Rating
IP54
Beam Angle
55b0 x 55b0
Light Type
LED Infrared
Digital Inputs
Trigger
Country of Origin
Germany
Operating Temperature Range-10 to 55 b0C
Current500 mA
MaterialAluminum anodized black; Glass; PMMA
ConnectionCable with M12x1 Male, 4-pin connector, 0.3 m cable length
Wavelength875 nm
Operating ModeNormal (continuous operation)
Approval/ConformityCE, UKCA, WEEE
