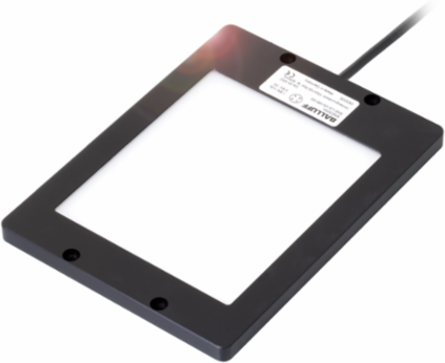

Balluff BAE LX-VS-HI150 LED Infrared Background Light 150 x 100 mm, IP54, 24 V
Balluff BAE LX-VS-HI150 LED Infrared Background Light 150 x 100 mm, IP54, 24 V
- MPN: BAE LX-VS-HI150
- PPN: BAL-BAE00KP
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1434.70/ EA
Description
The Balluff BAE LX-VS-HI150 LED Infrared Background Light is designed to provide reliable illumination for various applications, featuring a robust IP54 rating that ensures protection against dust and water splashes. With its generous illumination area of 150 x 100 mm and an optimal beam angle of 80° x 60°, this background light delivers consistent performance in challenging environments, operating efficiently within a temperature range of -10 to 55 °C. Crafted from high-quality anodized aluminum and equipped with a durable glass and PMMA lens, it operates at a rated voltage of 24 V and draws a maximum current of 830 mA, making it an excellent choice for continuous operation in industrial settings.
Specifications
- Voltage
- 24 V
- Beam Angle
- 80° x 60°
- Dimensions
- 130 x 9.5 x 205 mm
- Material
- Aluminum anodized black, Glass, PMMA
- Approval/Conformity
- CE, UKCA, WEEE
- Light Type
- LED Infrared
- Version
- Background light
- Connection
- Cable with connector, M12x1 Male, 4-pin, 0.3 m
Maximum Current830 mA
Operating Temperature Range-10 to 55 °C
Illumination Area150 x 100 mm
IP RatingIP54
Country of OriginGermany
Digital InputsTrigger
Operating ModeNormal (continuous operation)
Wavelength875 nm
