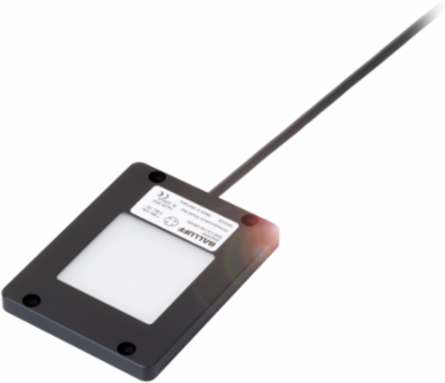

Balluff BAE LX-VS-HI050 LED Infrared Background Light, 875 nm Wavelength, 80 x 9.5 x 105 mm
Balluff BAE LX-VS-HI050 LED Infrared Background Light, 875 nm Wavelength, 80 x 9.5 x 105 mm
- MPN: BAE LX-VS-HI050
- PPN: BAL-BAE00KR
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$848.34/ EA
Description
The Balluff LED Infrared Background Light is engineered for precision and reliability in various industrial applications. With a wavelength of 875 nm, this background light features a compact design measuring 80 x 9.5 x 105 mm, making it ideal for integration into tight spaces. It operates under a normal mode for continuous illumination, ensuring consistent performance even in challenging environments with ambient temperatures ranging from -10 to 55 °C.
Constructed from durable anodized aluminum and equipped with a robust IP54 rating, this background light is designed to withstand dust and moisture, ensuring longevity in demanding settings. The 50 x 50 mm illumination area and a beam angle of 35° x 35° provide focused light where it's needed most, while the included M12 connector simplifies installation. Complying with CE, UKCA, and WEEE standards, this product reflects Balluff's commitment to quality and safety in automation solutions.
Specifications
- Wavelength
- 875 nm
- Current Draw Max
- 375 mA
- Beam Angle
- 35° x 35°
- Connection Type
- Cable with M12x1 Male 4-pin connector, 0.3 m
- Ingress Protection
- IP54 (IEC 60529)
- Compliance
- CE, UKCA, WEEE
- Digital Inputs
- Trigger
- Version
- Background light
Rated Operating Voltage24 V DC
Illumination Area50 x 50 mm
Dimensions80 x 9.5 x 105 mm
MaterialAnodized Aluminum, Glass, PMMA
Operating Temperature Range-10 to 55 °C
Country of OriginGermany
Operating ModeNormal (continuous operation)
Light TypeLED Infrared
