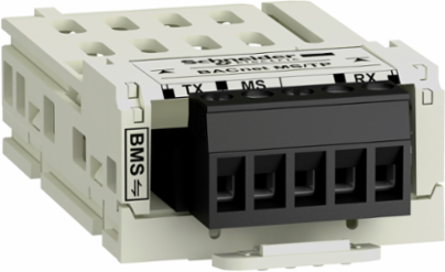

Communication Module BACnet MS/TP, IP20, 5-Pin Removable Terminal Block
Schneider Electric

Schneider Electric VW3A3725 Communication Module BACnet MS/TP, IP20, 5-Pin Removable Terminal Block

  • MPN: VW3A3725
  • PPN: SCH-VW3A3725
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $441.74

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Enhancing your automation and control systems, the communication module from Schneider Electric provides seamless integration via BACnet MS/TP. Designed to fit within an IP20 enclosure and featuring a convenient 5-pin removable terminal block, this module is an essential component for optimizing the performance of your AC drives. Its reliable communication capabilities facilitate efficient management and operation, making it a critical tool for modern industrial applications. With this module, you can ensure robust connectivity and control over your motor drives, streamlining your processes and improving operational efficiency.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Sweden, United States

    Communications & Management Attributes

    Communication Service
    AV, BV, MSV BACnet MS/TP, COV notification
    Communication Port Protocol
    BACnet MS/TP
    Communication Network TypeRS485

    Important Information Attributes

    Display Type
    1 LED error, 1 LED transmission activity, 1 LED reception activity (RX), 1 LED module status
    Vibration Resistance
    1.5 mm 3-13 Hz)1 mm 13-23 Hz), 2 gn 13-150 Hz)
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1929
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Electrical Connection
    screw terminal block 5-pin removable terminal block, BACnet MS/TP
    Product Or Component Type
    communication module
    Returnability
    Yes
    Sustainable Packaging
    No
    Transmission Support Medium
    2 twisted pairs
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8517620090
    Electromagnetic CompatibilityEMC immunity conforming to IEC 61000-6-1EMC immunity level 2 conforming to IEC 60730-1, electrostatic discharge level 3B conforming to IEC 61000-4-2, radiated RF fields level 3A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4, surge immunity test level 3 conforming to IEC 61000-4-5conducted RF disturbances level 3A conforming to IEC 61000-4-6, conducted EMC level 2 conforming to IEC 60730-1, conducted EMC conforming to IEC 61000-6-3
    Certificate AgencyBTL, CSA, UL 508, UL 873
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductAltivar
    Shock Resistance15 gn 11 ms
    Transmission Rate9.6, 19.2, 38.4, 76.8 kbit/s
    Pep CodeENVPEP2010018EN
    Package Weight(Lbs)66.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-65 °C, -20-65 °C
    Take Back
    No
    China Rohs Regulation
    X
    Environmental Disclosure
    ENVPEP2010018EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    ATV600
    Relative Humidity
    5-95 % without condensation
    Pep Code
    ENVPEP2010018EN
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Storage Altitude0-3048 m

    General Attributes

    Product Or Component Type
    communication module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025
