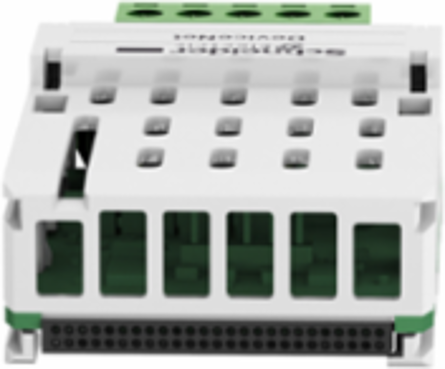

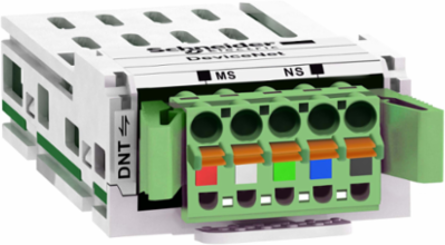

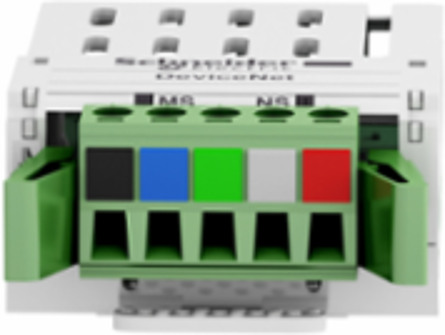

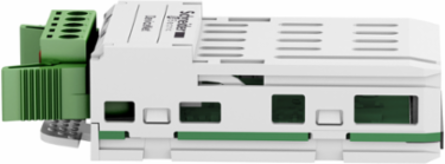

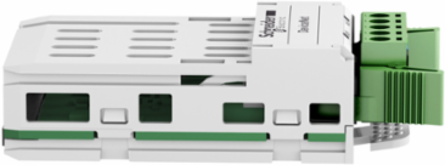

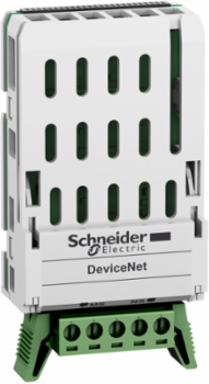

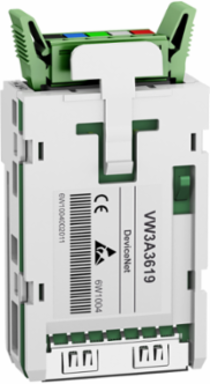

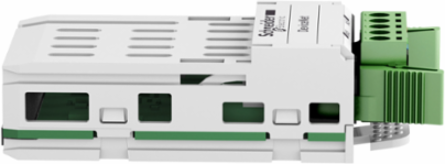

Schneider Electric VW3A3609 DeviceNet Communication Module for Altivar Drives, 500kbps, 5-Way Connector

MPN: VW3A3609
PPN: SCH-VW3A3609

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$269.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Schneider Electric Altivar DeviceNet communication module has 1 x 5-way screw connector. This communication module enables integration of your drive in your DeviceNet process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar 32, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 300g.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Sweden, United States

Communications & Management Attributes

Alarm Function	control mode received by graphic terminal, received instruction by graphic terminal
Communication Port Protocol	DeviceNet

Communication Service	inputs : polled, change of state, cyclic, outputs : polled, ODVA AC drive and CiA 402 profile, auto device replacement, communication monitoring time out adjustable by DeviceNet configurator

Complementary Attributes

Maximum Cable Distance Between Devices	100 m 500 kbps500 m 125 kbps

Important Information Attributes

Bus Profile	CIP AC Drive, CiA 402
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	End User
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Addressing	1...63 configurable by graphic terminal/SoMove software
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Altivar
Sustainable Packaging	No
Pep Code	ENVPEP2010018EN
Package Weight(Lbs)	67.000 g
Warranty (In Months)	18

Display Type	1 LED MS (Module Status), 1 LED NS (Network Status)
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Persona Type Ids	EU
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector 1 removable 5-way screw connector
Product Or Component Type	communication module
Returnability	Yes
Transmission Rate	125 kbps, 250 kbps and 500 kbps configurable
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2010018EN

Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2010018EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
