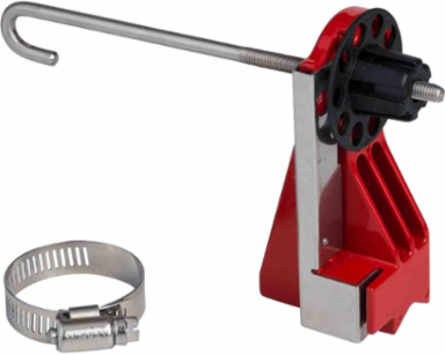

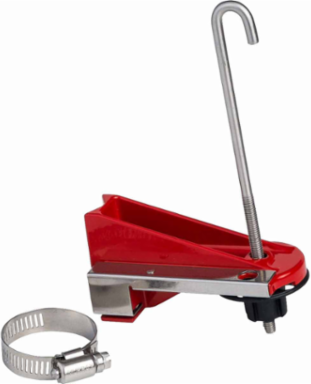

Brady 121540 Perma-mount Ball Valve Lockout, Metal, 0.5 to 2 Inch Valve Size Range
- MPN: 121540
- UPC: 754473708764
- PPN: BRD-121540
- UNSPSC: 39121909
CAD
$59.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

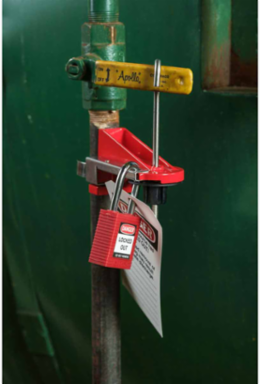

These retrofit devices stay permanently in place at the point of need.
Features
- One-time installation is easy to complete in just a few minutes
- Permanently mounts to valve body or pipe
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady is a world leader in lockout/tagout products and services, offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Handle
- Branded
- Yes
- Country
- GLOBAL
- Maximum Number of Padlocks
- 1
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Piece
- Adhesive (Y/N)
- No
- Coating Material
- Powder Coated
- Material
- Metal
- Depth (in/ft/yd)
- 6.11 in
- Dimensions
- 4.26 in H x 1.95 in W x 6.11 in D
- Height (in/ft/yd)
- 4.26 in
- Maximum Handle Thickness (in/ft/yd)
- 0.75 in
- Maximum Pipe Diameter (in/ft/yd)
- 1/2 in
- Maximum Service Temperature °F
- 194 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.62 mm
- Minimum Pipe Diameter (in/ft/yd)
- 2 in
- Minimum Service Temperature °F
- -40 °F
- Pipe Diameter Range (in/ft/yd)
- 1/2 to 2 in
- Service Temperature Range °F
- -40 °F to 194 °F
- Size - W x H x D (mm)
- 55.90 x 108.20 x 155.19
- Valve Size Range
- 0.5 to 2 in
- Width (mm/cm/m)
- 49.53 mm
Brand NameBrady®
ColorRed
Enables Industry ComplianceOSHA 1910.147
Open or Closed ValveClosed
Risk TypeMechanical Risk
Trade NamePerma-mount
Brady Material NumberLOTO-74
Lockout MaterialSteel
SAP B-NumberLOTO-74
Depth (mm/cm/m)155.19 mm
Dimensions (Metric)55.90 mm W x 108.20 mm H x 155.19 mm D
Height (mm/cm/m)108.20 mm
Maximum Outside Pipe Diameter (mm/cm/m)12.70 - 50.80
Maximum Service Temperature °C90 °C
Maximum Shackle Diameter (in/ft/yd)0.30 in
Maximum Valve Size2 in
Minimum Service Temperature °C-40 °C
Minimum Valve Size (in/ft/yd)0.5 in
Service Temperature Range °C-40 °C to 90 °C
Sign Size-General4.26 in x 1.95 in
Size - Width (mm)55.90 mm
Width (in/ft/yd)1.95 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
