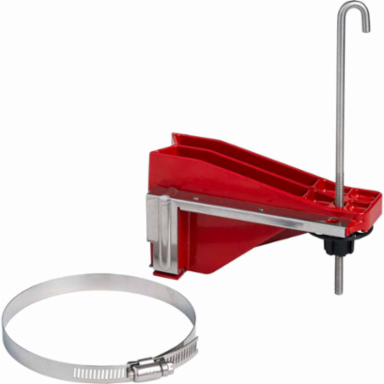

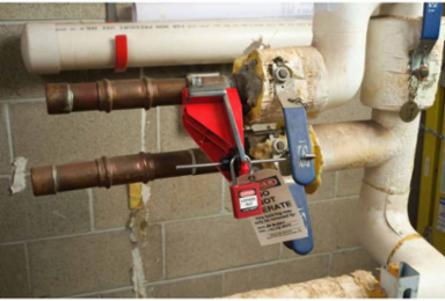

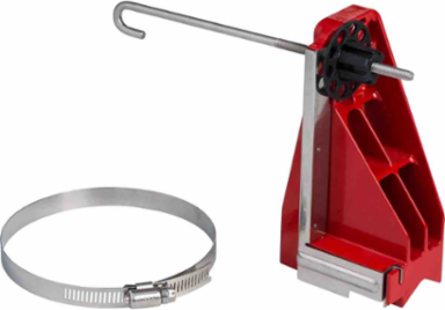

Brady 121541 Perma-mount Ball Valve Lockout Steel Red 2-4 Inch
- MPN: 121541
- UPC: 754473708771
- PPN: BRD-121541
- UNSPSC: 39121909
CAD
$106.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These retrofit devices stay permanently in place at the point of need.
Features
- One-time installation is easy to complete in just a few minutes
- Permanently mounts to valve body or pipe
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady is a world leader in lockout/tagout products and services, offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Handle
- Branded
- Yes
- Country
- GLOBAL
- Maximum Number of Padlocks
- 1
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Piece
- Adhesive (Y/N)
- No
- Coating Material
- Powder Coated
- Material
- Metal
- Depth (in/ft/yd)
- 7.32 in
- Dimensions
- 6.41 in H x 2.23 in W x 7.32 in D
- Height (in/ft/yd)
- 6.41 in
- Maximum Handle Thickness (in/ft/yd)
- 0.75 in
- Maximum Pipe Diameter (in/ft/yd)
- 2 in
- Maximum Service Temperature °F
- 194 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.62 mm
- Minimum Pipe Diameter (in/ft/yd)
- 4 in
- Minimum Service Temperature °F
- -40 °F
- Pipe Diameter Range (in/ft/yd)
- 2 to 4 in
- Service Temperature Range °F
- -40 °F to 194 °F
- Size - W x H x D (mm)
- 92.20 x 162.80 x 185.93
- Valve Size Range
- 2 to 4 in
- Width (mm/cm/m)
- 56.64 mm
Brand NameBrady®
ColorRed
Enables Industry ComplianceOSHA 1910.147
Open or Closed ValveClosed
Risk TypeMechanical Risk
Trade NamePerma-mount
Brady Material NumberLOTO-74
Lockout MaterialSteel
SAP B-NumberLOTO-74
Depth (mm/cm/m)185.93 mm
Dimensions (Metric)92.20 mm W x 162.80 mm H x 185.93 mm D
Height (mm/cm/m)162.80 mm
Maximum Outside Pipe Diameter (mm/cm/m)50.80 - 76.00
Maximum Service Temperature °C90 °C
Maximum Shackle Diameter (in/ft/yd)0.30 in
Maximum Valve Size4 in
Minimum Service Temperature °C-40 °C
Minimum Valve Size (in/ft/yd)2 in
Service Temperature Range °C-40 °C to 90 °C
Sign Size-General6.41 in x 2.23 in
Size - Width (mm)92.20 mm
Width (in/ft/yd)2.23 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
