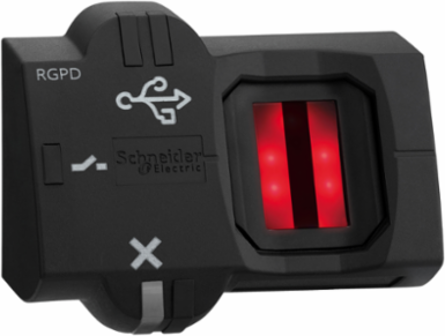

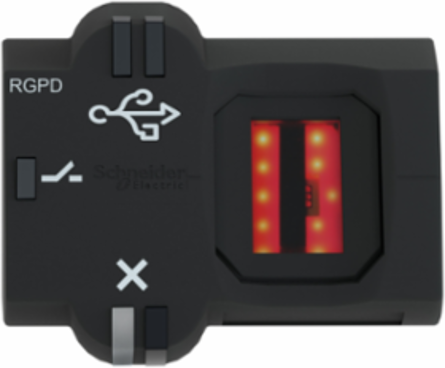

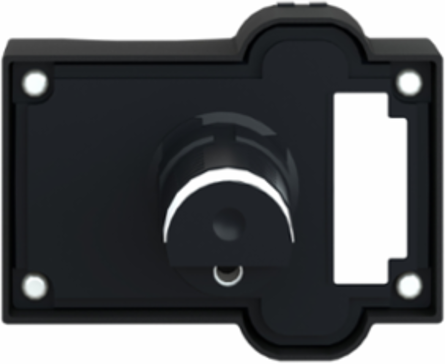

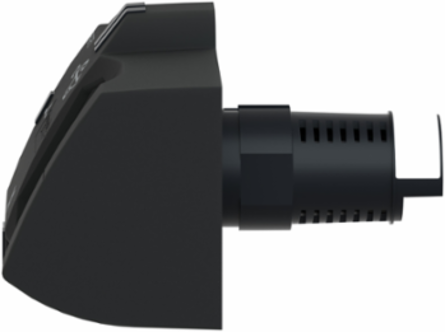

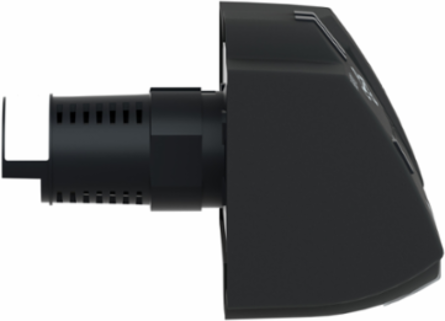

Schneider Electric XB5S7B2M12 Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
  • MPN: XB5S7B2M12
  • PPN: SCH-XB5S7B2M12

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$556.15/ EA

Description

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
CSA || UL
Range Of Product
Harmony XB5S
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage
-25-70 °C
Ambient Air Temperature For Operation-5-50 °C
StandardsIEC 61000-6-2 || IEC 61000-6-4
Vibration Resistance+/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Nema Degree Of ProtectionNEMA 12

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions

Complementary

Current Consumption
<= 70 mA no-load
Maximum Delay Response
1.5 s
Cable Insulation Material
PvR
Marking
CE
[Us] Rated Supply Voltage
24 V DC
Supply Voltage Limits
20-30 V DC
Operating Position
horizontal position || flat surface installation || vertical surface installation
Enclosure Material
polyamide PA66
[Ures] Residual Voltage
1 V closed state
Electrical ConnectionM12 connector 0.2 m
Short-Circuit Protection250 mA external fuse gG
Maximum Switching Current200 mA
Net Weight0.183 kg
Maximum Delay Recovery1.5 s
Local Signallingoutput state indicator 1 LED green) || administrator's registration mode 1 LED orange) || operator's registration mode 1 LED orange) || error 1 LED red) || reset 1 LED red)
Protection Typeoverload protection || short-circuit || reverse polarity
Function Of Modulemonostable
Maximum Delay First Up3 s + 0.5 ms per user registered

Specifications

Mounting Diameter
22 mm
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Bezel Material
plastic
Product Specific Application
industrial machines || materials handling
Output Type
PNP
Device Short Name
XB5S
Product Or Component Typebiometric switch RGPD
Sale Per Indivisible Quantity1
Operator Profilefingerprint reader
Type Of Operatormomentary
Memory Usage200 users with up to 2 fingerprints per user

Downloads
