Burndy BCSC146600 Black Cold Shrink Silicone Rubber Cable Insulator - 2000 V, 6 Inch Length
- MPN: BCSC146600
- UPC: 621945667952
- PPN: BUR-50128110
- UNSPSC: 39121446
CAD
$21.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

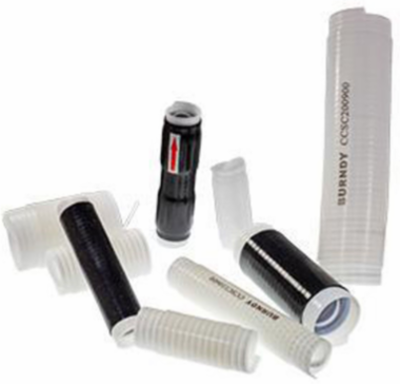

Black Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
- Voltage Rating
- 2000 V
- Material
- Silicone Rubber
- Operating Temperature Range
- -40 C to +105 C
- Compliance
- TELCORDIA GR-347-CORE, UL 486A/B, UL 746C Glow Wire Test
- Application
- Rated to 2000 V, insulation and moisture resistant sealing for in-line cable connector systems
- Class Code
- B75
Length6 in
ColorBlack
Abrasion and Cut Test Max Size750 kcmil
UV ResistanceYes
Country of OriginCN
Sub Class CodeB75B003
