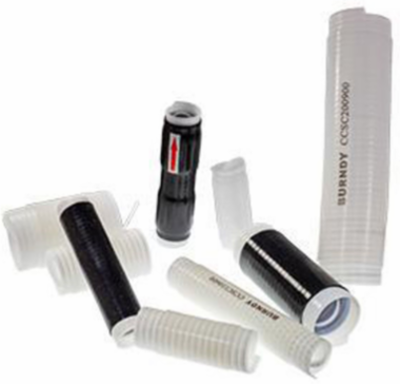

Burndy BCSC200600 Black Cold Shrink Tube, 6 Inch Length, Silicone Rubber, 2000 Volt Rated
- MPN: BCSC200600
- UPC: 621945667976
- PPN: BUR-50128112
- UNSPSC: 39121446
CAD
$30.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Black Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
| Voltage Rating | 2000 V |
|---|---|
| Material | Silicone Rubber |
| Compliance | TELCORDIA GR-347-CORE, UL 746C Glow Wire Test, cUL UL 486A/B |
| Country of Origin | CN |
| Sub Class Code | B75B003 |
| Length | 6 in |
|---|---|
| Operating Temperature Range | -40 C to +105 C |
| Color | Black |
| Class Code | B75 |
