Hubbell BCSC256600 Black Cold Shrink Silicone Rubber Tube, 6 Inch, 2000 Volt Rating

Black Cold Shrink Silicone Rubber Tube, 6 Inch, 2000 Volt Rating
  • MPN: BCSC256600
  • UPC: 621945668003
  • PPN: BUR-50128115

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$35.03/ EA

Description

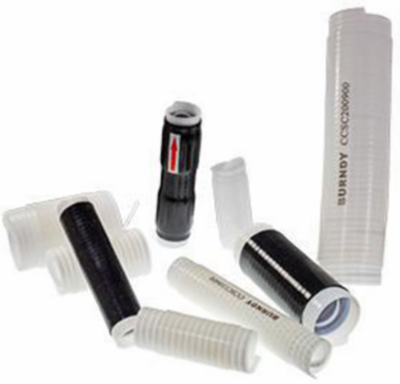

Black Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.

Features

  • Length of tube is consistent before and after application
  • Easy, safe installation
  • Suitable for wide range of cable sizes
  • UV resistance, thermal stability
  • No special tools or training required
  • Forms a moisture resistant seal
  • Indoor and outdoor applications
  • Rip and Grip Installation does not require heat gun or any installation tools
  • Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
  • cUL insulating cover for wire connectors tested in accordance to UL 486A/B
  • Passes UL 746C Glow Wire Test
  • Ripcord is recyclable

Specifications

Specifications

Color
Black
Description - Slang
Cold Shrink
Voltage Rating
2000 V
Class Code
B75
Harmonization Code
3926909989
Sub Class Code
B75B003
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
121
Package - GTIN - Package
30621945668004
Country of OriginCN
Length6 in
ApplicationCold Shrink, Rated to 2000 Volts, offer insulation and moisture resistant sealing for in-line cable connector systems
Freight Class Code16027000
Image Actual Or RepresentativeA
MaterialSilicone Rubber
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs121
Carton - SCC-14 Next Lower Level Sub Pack00621945668003
Case - SCC-14 Next Lower Level Sub Pack30621945668004
Package Quantity1 EA
