Burndy CCSC256600 Clear Cold Shrink Silicone Rubber, 2000V Insulation for 750 kcmil Connectors
- MPN: CCSC256600
- UPC: 621945658349
- PPN: BUR-50124997
- UNSPSC: 39121728
CAD
$55.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

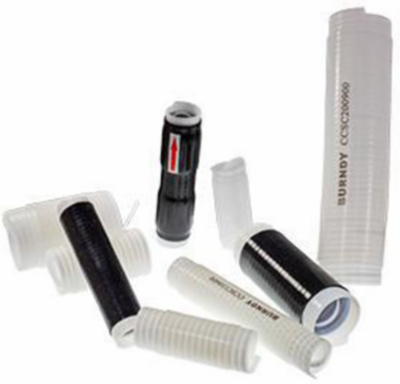

Clear Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
- Voltage Rating
- 2000 V
- Material
- Silicone Rubber
- Temperature Range
- -40 C to +105 C
- Cable Size Rating
- Up to 750 kcmil
- Country of Origin
- CN
Length6 in
ColorClear
Jacket OD Range1.22-2.01 in
ComplianceTELCORDIA GR-347-CORE, UL 486A/B, UL 746C Glow Wire Test
