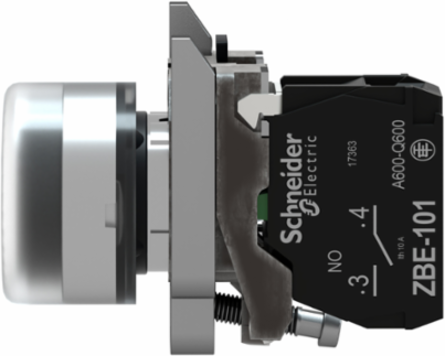

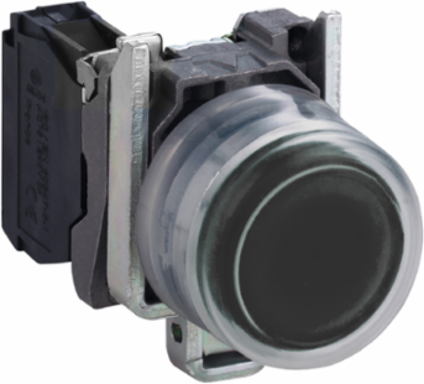

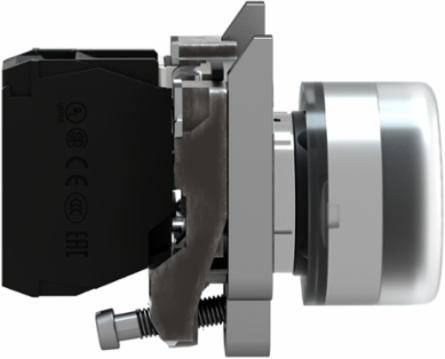

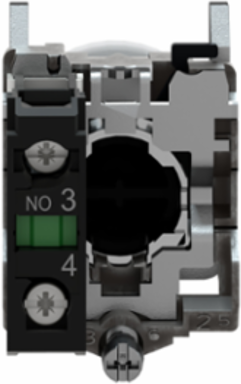

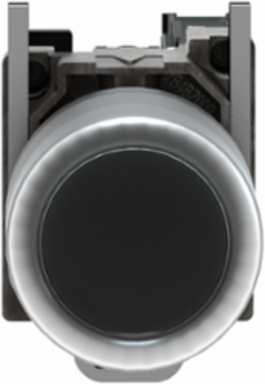

Harmony XB4 22mm Metal Push Button with Spring Return, IP66
Harmony XB4 22mm Metal Push Button with Spring Return, IP66
Harmony XB4 22mm Metal Push Button with Spring Return, IP66
Harmony XB4 22mm Metal Push Button with Spring Return, IP66
Harmony XB4 22mm Metal Push Button with Spring Return, IP66
Schneider Electric

Schneider Electric XB4BP21 Harmony XB4 22mm Metal Push Button with Spring Return, IP66

  • MPN: XB4BP21
  • PPN: SCH-XB4BP21
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $60.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4 modular black push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Operator Additional Information
    clear boot
    Mounting Diameter
    22 mm
    Product Or Component Type
    push-button
    Fixing Collar Material
    zamak
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Sale Per Indivisible Quantity
    1
    Contact Operation
    slow-break
    Product Compatibility
    not compatible with legend holder
    Range Of ProductHarmony XB4
    Type Of Operatorspring return
    Shape Of Signaling Unit Headround
    Head Typestandard
    Contacts Type And Composition1 NO
    Bezel Materialchromium plated metal
    Operator Profileblack projecting, unmarked
    Device Short NameXB4

    Complementary

    Contacts Usage
    standard contacts
    Terminals Description Iso N°1
    (13-14)NO
    Short-Circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Contacts Material
    silver alloy (Ag/Ni)
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Mechanical Durability
    10000000 cycles
    Width
    30 mm
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Height47 mm
    Operating Force3.8 N NO changing electrical state
    Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
    Positive Openingwithout
    Net Weight0.082 kg
    Device Presentationcomplete product
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Depth61 mm
    Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

    Environment

    Product Certifications
    UL listed || LROS (Lloyds register of shipping) || CSA || BV || GL || DNV
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67
    Overvoltage Category
    class I IEC 60536
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    StandardsJIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Nema Degree Of ProtectionNEMA 13 || NEMA 4X

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1808008EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1808008EN
