Schmersal 101133842 Magnetic Reed Switch BN 310-10Z, 88 mm x 25 mm, IP67, Up to 60 mm Actuation

MPN: 101133842
PPN: SCM-101133842

$133.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Magnetic Reed Switch BN 310-10Z, 88 mm x 25 mm, IP67, Up to 60 mm Actuation

Features

1 Reed contakts
Non-contact principle

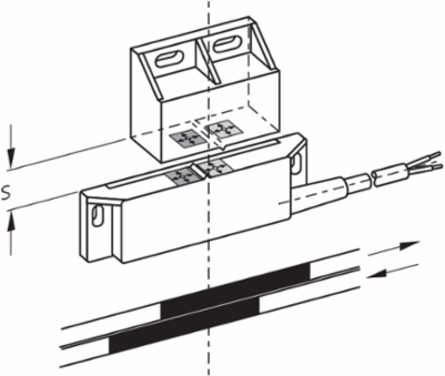

Actuation from side
Flat design
Actuating surface and direction of actuation marked by switch symbol

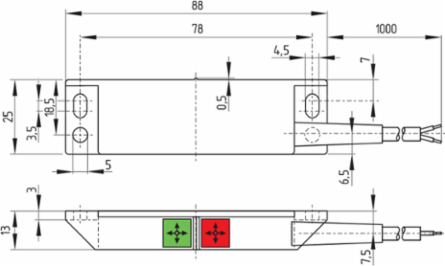

88 mm x 25 mm x 13 mm
Thermoplastic enclosure
Actuating distance up to 60 mm depending on actuating magnet and version
2 reed contacts

Documentation & Downloads

Specifications

Electrical data

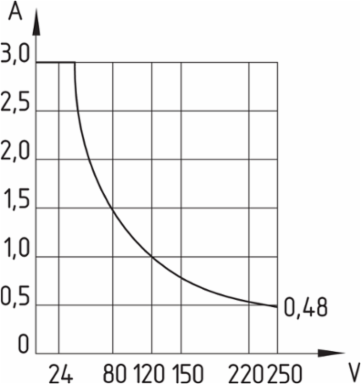

Switching voltage, maximum	250 VAC
Switching current, maximum	3 A
Switching capacity, maximum	120 VA
Bounce duration, minimum	0.3 ms
Switching frequency, maximum	300 Hz

Switching voltage, maximum	250 VDC
Switching capacity, maximum	120 W
Switching element	Normally open contact (NO)
Bounce duration, maximum	0.6 ms

Note

Note (General)	The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets. \| When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N). This does not apply to the bistable contact. \| The switch is to be mounted on iron with a non-magnetic layer of at least 20 mm.

Mechanical data - Dimensions

Length of sensor	13 mm
Height of sensor	25 mm

Width of sensor	88 mm

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Electrical data - Digital Output

Design of control elements	Reed contacts

General data - Features

Suitable for elevators	Yes

Number of normally open (NO)	1

General data

Working principle	Magnetic drive
Enclosure material	Glass-fibre, reinforced thermoplastic

Housing construction form	rectangular
Gross weight	65 g

Ambient conditions

Degree of protection	IP67
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm

Ambient temperature	-25 ... +75 °C
Restistance to shock	30 g / 11 ms

Mechanical data - Connection technique

Termination	Cable
Wire cross-section	0.75 mm
Material of the Cable mantle	H03VV-F

Length of cable	1 m
Wire cross-section	18 AWG

Mechanical data - Switching distances according EN IEC 60947-5-3

Switching distance S	5 mm … 50 mm \| BP 10 = 5 mm \| 2 x BP 10 = 17 mm \| BP 15 = 6 mm \| 2 x BP 15 = 17 mm \| 2 x BP 15/2 = 17 mm \| BP 20 = 20 mm \| BP 31 = 20 mm \| BP 12 = 10 ... 30 mm \| BP 34 = 5 ... 20 mm \| BP 11 = 8 ... 20 mm \| BP 21= 25 ... 50 mm \| BE 20 = 20 mm

Note (Switching distance Sn)	Actuating distance up to 50 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or negative, is possible due to ferromagnetic influences. The mutual interference between multiple actuating magnets must be observed.
