Schmersal 101177733 Non-Contact Safety Switch with M12 Connector, 119.5 mm Width, IP67, 140 mm Height
- MPN: 101177733
- PPN: SCM-101177733
CAD
$215.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

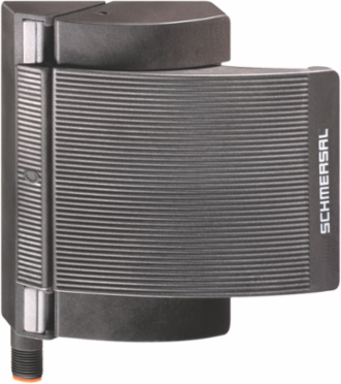

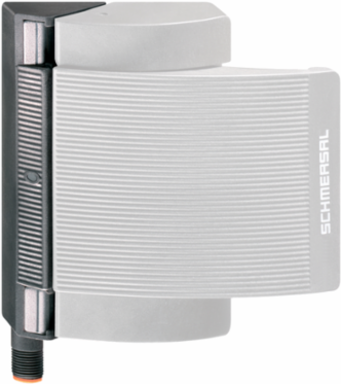

Non-Contact Safety Switch with M12 Connector, 119.5 mm Width, IP67, 140 mm Height
Features
- Connector M12 x 1, 8-pole
- Thermoplastic enclosure
- Non-contact safety switch
- Does not protrude into the door opening

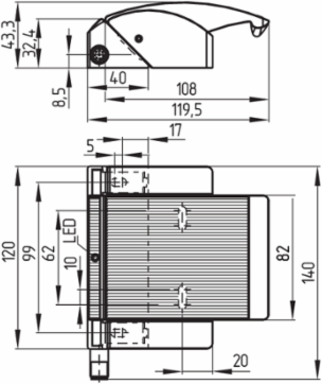

- 119,5 mm x 140 mm x 43,3 mm
- Substitutes door-handle and safety switch, no further door fittings required
- Modern and symmetric design
- Tamper-proof because of integral coded safety sensor
- Ergonomic operation
- Suitable for hinged and sliding guards
- No protruding actuator
- Simple mounting with 4 Screws
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 24 VDC |
|---|---|
| Switching capacity, maximum | 0.2 W |
| Switching current, maximum | 0.01 A |
|---|---|
| Switching frequency, maximum | 5 Hz |
Note
| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. | Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit. |
|---|
Mechanical data - Dimensions
| Length of sensor | 43.3 mm |
|---|---|
| Height of sensor | 140 mm |
| Width of sensor | 119.5 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 25,000,000 Operations |
|---|
General data - Features
| Integral system diagnostics, status | Yes |
|---|---|
| Number of normally open (NO) | 1 |
| Number of normally closed (NC) | 2 |
|---|---|
| Number of safety contacts | 2 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | quasi-flush |
| Gross weight | 105 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Wiring example

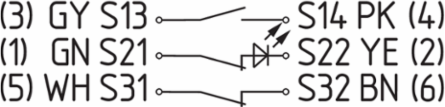

| Note (Wiring diagram) | Contact S21-S22 must be integrated in the safety circuit. |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Connector M12 |
|---|
Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 0 mm |
|---|
| Assured switching distance "OFF" S | 22 mm |
|---|
Mechanical data
| Actuating element | Magnet |
|---|---|
| Latching force | 100 N |
| Door weight, Hinged guard, maximal | 5 kg |
| Door hinge | Left |
|---|---|
| Door weight, Sliding guard, maximal | 3 kg |
Accessory
| Recommendation (actuator) | BNS-B20-B01 |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | BG | cULus |
|---|
Status indication
| Note (Integral System Diagnostics, status ) | The LED is illuminated when the guard is closed. |
|---|
