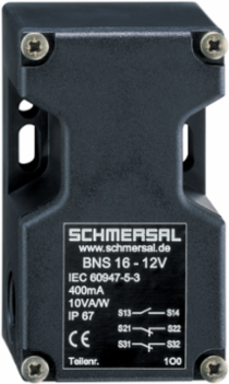

Schmersal 101172565 Coded Reed Contact Safety Switch, 52 mm x 90 mm x 32 mm, IP67, 150 g
- MPN: 101172565
- PPN: SCM-101172565
CAD
$277.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Coded Reed Contact Safety Switch, 52 mm x 90 mm x 32 mm, IP67, 150 g
Features
- 3 cable entries M 20 x 1.5
- Wiring compartment
- Thermoplastic enclosure
- Suitable for food processing industry
- Concealed mounting possible
- 52 mm x 90 mm x 32 mm
- Long life
- no mechanical wear
- Insensitive to transverse misalignment
- Insensitive to soiling
- Coded reed contact safety switch
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 100 VAC |
|---|---|
| Switching current, maximum | 0.4 A |
| Switching frequency, maximum | 5 Hz |
| Switching voltage, maximum | 100 VDC |
|---|---|
| Switching capacity, maximum | 10 W |
Note

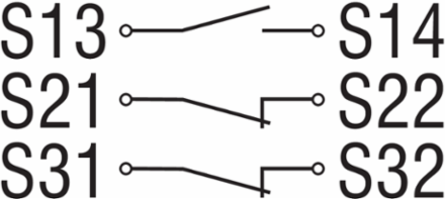

| Note (General) | Contact symbols shown for the closed condition of the guard device. |
|---|

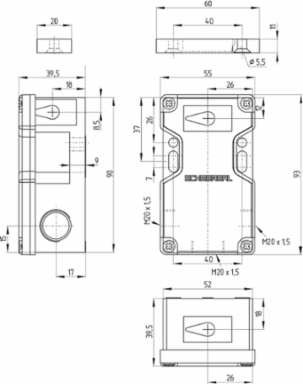

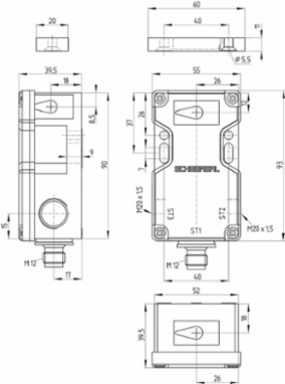

Mechanical data - Dimensions
| Length of sensor | 39 mm |
|---|---|
| Height of sensor | 90 mm |
| Width of sensor | 52 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 25,000,000 Operations |
|---|
Electrical data - Digital Output
| Design of control elements | Miscellaneous, Reed contacts |
|---|
General data - Features
| Prerequisite evaluation unit | Yes |
|---|---|
| Number of normally open (NO) | 1 |
| Number of normally closed (NC) | 2 |
|---|
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | not flush |
| Gross weight | 150 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 1.5 mm² |
| Cable section, minimum | 0.25 mm² |
|---|

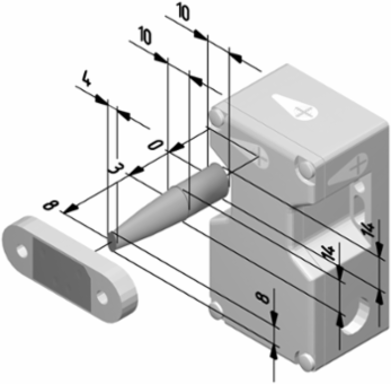

Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 8 mm |
|---|
| Assured switching distance "OFF" S | 18 mm |
|---|
Mechanical data

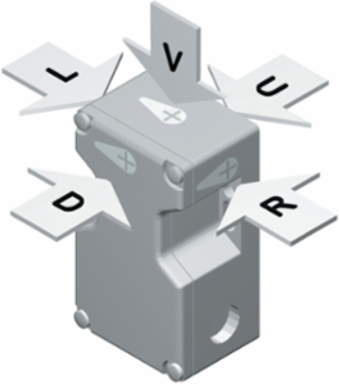

| Active area | bottom |
|---|---|
| Direction of motion | Head-on to the active surface |
| Actuating element | Magnet |
|---|
Accessory
| Recommendation (actuator) | BPS 16 |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | BG | cULus |
|---|
