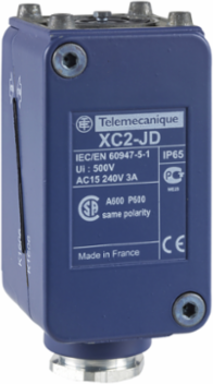

Telemecanique Sensors ZC2JD1H2 Limit switch body, Limit switches XC Standard, 300 VAC, 10 A, XC2J
- MPN: ZC2JD1H2
- PPN: TES-ZC2JD1H2
CAD
$234.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, 300 VAC, 10 A, XC2J
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- snap action
- Body Material
- metal
- Product Compatibility
- XC2J
- Device Short Name
- ZC2J
Contacts Type And Composition1 C/O
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles1
Complementary
- Height
- 81-81 mm
- Terminals Description Iso N°1
- (11-12)NC || (23-24)NO || (21-22)NC || (13-14)NO
- [Ui] Rated Insulation Voltage
- 500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 42 mm
- Local Display
- without
- Maximum Resistance Across Terminals
- 0.25 mOhm IEC 60255-7 category 3
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth41 mm
Net Weight0.38 kg
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP65
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK08
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
