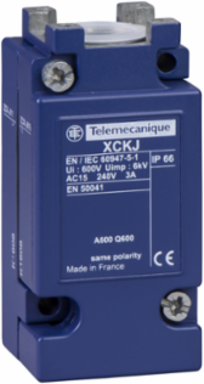

Telemecanique Sensors ZCKJ215 Limit switch body, Limit switches XC Standard, ZCKJ, plug in, w/o display, 2C/O, snap action, Pg13
- MPN: ZCKJ215
- PPN: TES-ZCKJ215
CAD
$262.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZCKJ, plug in, w/o display, 2C/O, snap action, Pg13
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- snap action
- Associated Head
- ZCKE65 || ZCKE08 || ZCKE06 || ZCKE629 || ZCKE63 || ZCKE619 || ZCKE62 || ZCKE61 || ZCKE23 || ZCKE05 || ZCKE66 || ZCKE67 || ZCKE21 || ZCKE64
- Cable Entry
- 1 entry tapped for Pg 13.5 cable gland
- Product Compatibility
- XCKJ
- Device Short Name
- ZCKJ
Contacts Type And Composition2 C/O
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
Complementary
- Height
- 77-77 mm
- Terminals Description Iso N°1
- (23-24)NO || (13-14)NO || (21-22)NC || (11-12)NC
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 40 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth44 mm
Net Weight0.31 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- 10-120 °C
- Ambient Air Temperature For Operation
- 10-120 °C high temperature
- Ip Degree Of Protection
- IP66
Environmental Characteristichigh temperature
Ik Degree Of ProtectionIK07
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
