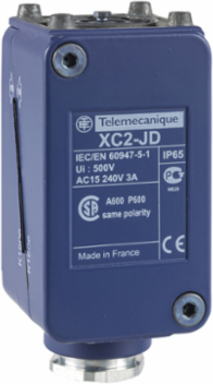

Telemecanique Sensors ZC2JD29 Limit switch body base, Limit switches XC Standard, ZC2J plug in, without display
- MPN: ZC2JD29
- PPN: TES-ZC2JD29
- UNSPSC: 39122213
CAD
$90.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body base, Limit switches XC Standard, ZC2J plug in, without display
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Cable Entry
- 1 tapped entry for Pg 13.5 cable gland (included)
- Product Compatibility
- XC2J
Body Typeplug-in body
Body Materialmetal
Product Or Component Typelimit switch body base
Device Short NameZC2J
Complementary
- Height
- 81-81 mm
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Depth
- 41 mm
- Net Weight
- 0.38 kg
Terminals Description Iso N°1(21-22)NC || (13-14)NO || (11-12)NC || (23-24)NO
Width42 mm
Local Displaywithout
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP65
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK08
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
