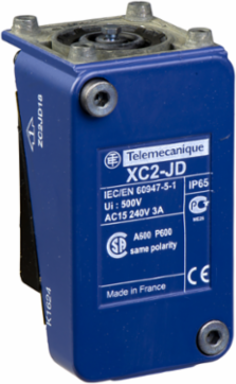

Telemecanique Sensors ZC2JD18 Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 1C/O
- MPN: ZC2JD18
- PPN: TES-ZC2JD18
- UNSPSC: 39122213
CAD
$368.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 1C/O
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Associated Head | ZC2JE01 || ZC2JE09 || ZC2JE66 || ZC2JE65 || ZC2JE64 || ZC2JE63 || ZC2JE62 || ZC2JE05 || ZC2JE70 || ZC2JE61 || ZC2JE03 || ZC2JE02 |
| Product Or Component Type | limit switch body part with contact |
| Series Name | standard format |
| Body Type | plug-in body |
| Body Material | metal |
| Device Short Name | ZC2J |
| Contacts Material | silver plated contacts |
|---|---|
| Cable Entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Number Of Steps | 1 1 position |
| Contacts Type And Composition | 1 C/O |
| Contact Operation | snap action |
| Product Compatibility | XC2J |
| Number Of Poles | 1 |
Complementary
| Height | 81-81 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Local Display | without |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | without |
| Width | 42 mm |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Terminals Description Iso N°1 | (11-12)NC || (13-14)NO |
|---|---|
| Minimum Actuation Speed | 0.01 m/min |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.38 kg |
| [Ui] Rated Insulation Voltage | 500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Depth | 41 mm |
Environment
| Ambient Air Temperature For Operation | -25-70 °C standard environment |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
| Ik Degree Of Protection | IK08 |
|---|---|
| Environmental Characteristic | corrosive |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
