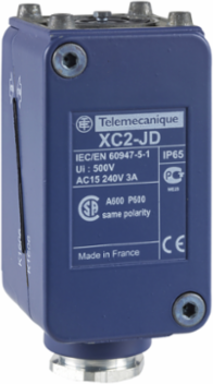

Telemecanique Sensors ZC2JD4 Limit switch body, Limit switches XC Standard, ZC2J, plug in, without display, 2C/O

This product is part of the XC Special range, an offer of limit switches. This limit switch body has 2 changeover, snap action contacts. It is a limit switch body with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP65 and IK08 rated product. This limit switch plug-in body is made of metal. Its dimensions are 42mm (width) x 41mm (depth) x 81mm (height). It weighs 0.38kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with the XC2J limit switches. The associated heads are ZC2JE06, ZC2JE04, ZC2JE84, ZC2JE83, ZC2JE85, ZC2JE82, ZC2JE81 and ZC2JE07. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications. The IEC limit switch offers a positive opening on all snap and slow break contacts, for safer machinery. It is available with modular design for easier maintenance.
