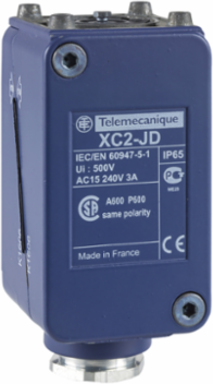

Telemecanique Sensors ZC2JD28 Limit switch body part with contact, Limit switches XC Standard, 2 C/O, snap action
- MPN: ZC2JD28
- PPN: TES-ZC2JD28
- UNSPSC: 39122213
CAD
$160.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body part with contact, Limit switches XC Standard, 2 C/O, snap action
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- snap action
- Body Material
- metal
- Product Or Component Type
- limit switch body part with contact
- Number Of Steps
- 1 1 position
- Number Of Poles
- 2
Contacts Type And Composition2 C/O
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Cable Entry1 tapped entry for Pg 13.5 cable gland (included)
Product CompatibilityXC2J
Device Short NameZC2J
Complementary
- Height
- 81-81 mm
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC || (11-12)NC || (23-24)NO
- [Ui] Rated Insulation Voltage
- 500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 42 mm
- Local Display
- without
- Maximum Resistance Across Terminals
- 0.25 mOhm IEC 60255-7 category 3
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth41 mm
Net Weight0.38 kg
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -40-70 °C low temperature
- Ip Degree Of Protection
- IP65
Environmental Characteristiclow temperature
Ik Degree Of ProtectionIK08
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
