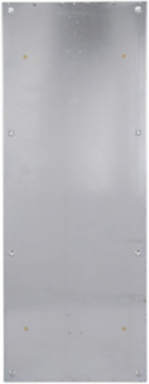

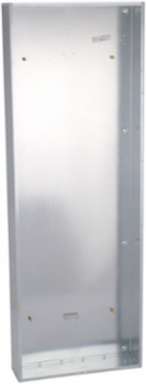

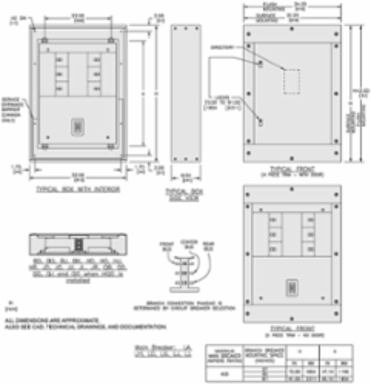

Square D HC3291DB9 I-Line Circuit Breaker Panelboard, 32 Inch W x 91 Inch H x 9.5 Inch D, 800 A
- MPN: HC3291DB9
- UPC: 785901437888
- PPN: SCH-HC3291DB9
- UNSPSC: 39121112
CAD
$596.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, panelboard enclosure has a rated current of 600-800A. This enclosure has a NEMA 1 Degree of protection rating. Dimensions for this enclosure are 2311 mm, (H),813 mm (W),210 mm(D) and weighs 66.26 kg. This product complys to UL & CSA standards.
Features
- I-Line® panelboards provide flexibility and versatility for feeding lighting and appliance panelboards
- Protects the electrical wires feeding power from the power grid to your residential or commercial building
- Product characteristics conformity is certified by the UL and CSAs
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 9.5 in |
| Weight | 65771 g |
|---|
Physical Attributes
| Enclosure Nominal Height | 2311 mm |
|---|
| Enclosure Nominal Width | 813 mm |
|---|
Complementary Attributes
| Line Rated Current | 800 A, 600 A |
|---|
Important Information Attributes
| Certificate Agency | UL, CSA |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 90 kg CO2 eq., 90.32630888985629 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 351 kg CO2 eq., 350.56316927337514 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Short Name | HCM |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 460 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 32 in |
| Customs Code | 7326908688 |
| Silicone Free | Yes |
| Functional Unit Description | Accommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Carbon Footprint Of The Distribution Phase A4 | 19.007002957887334, 19 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.10781347496386538, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-26 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Application | panelboard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | enclosure |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 91 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 460.0042945960826 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509035EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | enclosure |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
