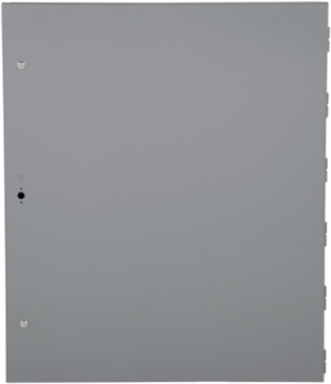

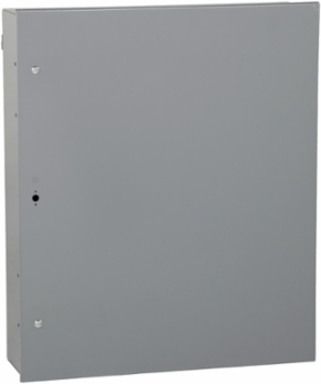

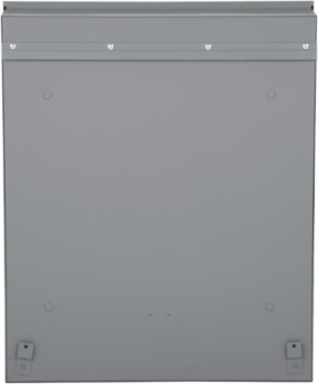

Schneider Electric HCJ3248WP I-Line Panelboard Box, 32 Inch W x 48 Inch H x 9.5 Inch D, 800 A, NEMA 1/3R
- MPN: HCJ3248WP
- UPC: 785901492184
- PPN: SCH-HCJ3248WP
CAD
$3891.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for versatility and robust performance, the Schneider Electric HCJ3248WP I-Line Panelboard Box offers a reliable solution for your electrical distribution needs. With a spacious design of 32 inches in width and 48 inches in height, this panelboard can accommodate substantial loads, supporting up to 800 amps of current. Its durable construction meets the NEMA 1/3R ratings, ensuring it can withstand varied environment conditions while providing effective protection. Ideal for use in industrial settings, this panelboard enhances the efficiency of automation and control systems, making it an essential component for modern electrical installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth9.5 in
Complementary Attributes
- Line Rated Current
- 800 A
Important Information Attributes
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 156 kg CO2 eq., 155.73463647339898
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 604 kg CO2 eq., 604.417787007377
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2202
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Application
- panelboard
- Mounting Mode
- wall mount
- Product Or Component Type
- enclosure
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2509035EN
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 48 in
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 113.398 kg
- Take-back
- No
- Customs Code
- 7326908688
Carbon Footprint Of The Distribution Phase [A4]32.770615034262946, 33 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.18588484946180545, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Cover Typelockable cover
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductI-Line
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint793 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %98
Width Nominal32 in
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2509035EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2509035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Nema Degree Of ProtectionNEMA 1, NEMA 3R
Halogene PerformanceHalogen free product
Mercury FreeYes
Carbon Footprint793.1089233645007
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductI-Line
