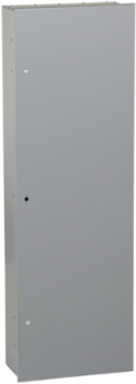

Square D HC2886WP I-Line Panelboard 28 Inch W x 86 Inch H x 13 Inch D, NEMA 3R/12, 800 A
- MPN: HC2886WP
- UPC: 785901231387
- PPN: SCH-HC2886WP
CAD
$3891.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth13 in
Physical Attributes
- Enclosure Nominal Height
- 2184 mm
Enclosure Nominal Width660 mm
Complementary Attributes
- Line Rated Current
- 800 A
Important Information Attributes
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 219 kg CO2 eq., 219.2752141353926
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 851 kg CO2 eq., 851.0235274214083
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- HCP-SU
- Product Or Component Type
- enclosure
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2509035EN
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 86 in
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 159.665 kg
- Take-back
- No
- Customs Code
- 8538100000
Carbon Footprint Of The Distribution Phase [A4]46.14120398459932, 46 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.26172687780489223, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationpanelboard
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductI-Line
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint1 117 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %98
Width Nominal28 in
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Carbon Footprint
- 1116.7016724192051
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2509035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeYes
Environmental DisclosureENVPEP2509035EN
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
