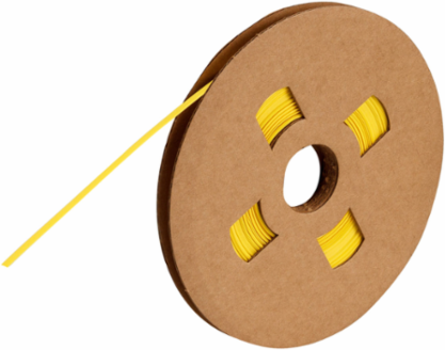

Brady HT-C-125-YL PermaSleeve Heat-Shrink Wire Marker Sleeves, 0.125 Inch Dia x 100 ft, Yellow
- MPN: HT-C-125-YL
- UPC: 662820999171
- PPN: BRD-HT-C-125-YL
- UNSPSC: 55121612
CAD
$604.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
Features
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
- Operating temperature range of -67 to 437° F (-55 to 225° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Ribbon Series
- R6000HF
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 1 Roll(s) / Roll
- Adhesive (Y/N)
- No
- Indoor or Outdoor Use
- Outdoor Use
- Material
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Resistance Properties
- Chemical-Resistant; Gasoline-Resistant; Smear-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.125 in
- Dimensions
- 0.235 in H
- Dimensions 2
- 0.235 in H
- Height (mm/cm/m)
- 6 mm
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (mm/cm/m)
- 2.79 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.063 in
- Minimum Wire Gauge
- 20 AWG
- Recovered Diameter (mm/cm/m)
- 1.6 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.38 mm
- Roll Length (mm/cm/m)
- 30.48 m
- Size - Width (mm)
- 6.00 mm
- Sleeve Size (mm/cm/m)
- 3.2 mm Dia x 30.48 m L
- Wire Gauge Range
- 20 AWG to 16 AWG
Brand NameBrady®
Enables Industry ComplianceMethod 215K; MIL-STD-202G; SAE-AMS-DTL-23053/18 (Class 2) for Insulation Sleeving; SAE-AS-81531 Marking of Electrical Insulating Materials
For Use with PrinterBBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBBP72
Recommended RibbonR6006
ShapeContinuous
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Trade NamePermaSleeve®
Brady Material NumberB-345
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-345
Diameter as Supplied (mm/cm/m)3.2 mm
Dimensions (Metric)6.00 mm W x 6 mm H x 30.48 m L
Height (in/ft/yd)0.235 in
Maximum Service Temperature °C225 °C
Maximum Wire Diameter (in/ft/yd)0.11 in
Maximum Wire Gauge16 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.60 mm
Recovered Diameter (in/ft/yd)0.063 in
Recovered Wall Thickness (in/ft/yd)0.015 in
Roll Length (in/ft/yd)100 ft
Size - Length (m)30.48 m
Sleeve Size (in/ft/yd)0.125 in Dia x 100 ft L
Wire Diameter Range0.063 in to 0.11 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
