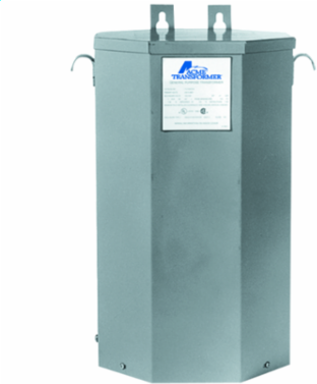

Acme Electric T243570 Buck-Boost Transformer 240 X 480V 24/48V 7.5kVA NEMA 3R 135 lb.
- MPN: T243570
- UPC: 047503182505
- PPN: HBL-T243570
- UNSPSC: 39121025
CAD
$3572.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 7.5kVA
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 10.84 in x 11.12 in x 20.81 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Buck-Boost Transformer
- Frequency Rating
- 60 Hz
- Length
- 10.84 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 180°C
- Weight
- 135 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D170
- Construction
- Encapsulated
- BOX SIZE
- 24.000x13.000x15.000 (in)
- Pallet Height
- 29.000 in
- Pallet Weight
- 555.000 lb.
- NAICS Code
- 335311
CSA StandardC22.2 No 47
kVA7.5
Product CategoryBuck-Boost Transformer
Secondary Voltage24/48 V
Height20.81 in
MountingWall
Width11.12 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503182505
Pallet Length40.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
