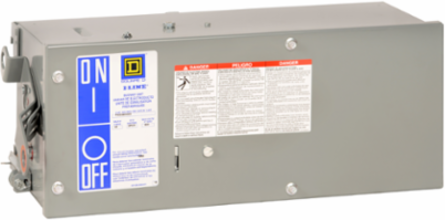

Square D PHD36060GU31X Plug-in unit, I-Line Busway, H-frame, 60A, 3 phase, 3 wire, 600VAC, 14kA, ground, MicroLogic 3.2

Plug-in unit, I-Line Busway, H-frame, 60A, 3 phase, 3 wire, 600VAC, 14kA, ground, MicroLogic 3.2

Square D PHD36060GU31X Plug-in unit, I-Line Busway, H-frame, 60A, 3 phase, 3 wire, 600VAC, 14kA, ground, MicroLogic 3.2

MPN: PHD36060GU31X
PPN: SCH-PHD36060GU31X

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Plug-in unit, I-Line Busway, H-frame, 60A, 3 phase, 3 wire, 600VAC, 14kA, ground, MicroLogic 3.2

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1410002EN

Eu Rohs Directive: Compliant with Exemptions

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

[In] Rated Current: 60-60 A

Mounting Mode: plug-in

Protection Type: circuit breaker

Width: 551 mm

Network Number Of Phases: 3 phases

Awg Gauge: AWG 8...AWG 3/0 1 phase and neutral || AWG 6...AWG 2/0 1 ground

[Ics] Rated Service Short-Circuit Breaking Capacity: 80 %

Height216 mm

Poles Description3P

Wiring Configuration3-wire (integral ground bus)

Depth232 mm

[Ue] Rated Operational Voltage600 V AC

Breaking Capacity25 kA 240 V AC || 18 kA 480 V AC || 14 kA 600 V AC

Environment

Product Certifications: UL listed file E22182 || CSA C22.2 No 27

StandardsUL 857

Specifications

Trip Unit Technology: electronic, standard, MicroLogic 3.2, LI

Circuit Breaker Type: H-frame

Range Of ProductI-Line

Product Or Component Typeplug-in unit
