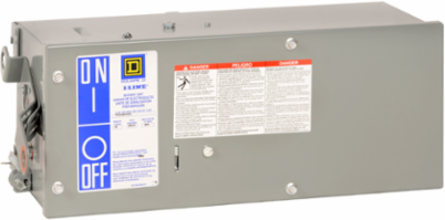

Square D PHJ36100GNU44X I-Line Busway Plug-in Unit, 100A, 3 Phase, 600VAC, H-frame
- MPN: PHJ36100GNU44X
- PPN: SCH-PHJ36100GNU44X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The I-Line Busway Plug-in Unit by Schneider Electric is engineered for efficient power distribution, featuring a robust design that facilitates seamless integration into existing systems. With a capacity of 100A and compatibility with 3-phase, 600VAC setups, this unit is ideal for a variety of industrial applications, ensuring reliable performance and safety. The H-frame construction enhances its durability, making it a valuable component for those seeking to optimize their electrical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 232 mm
Complementary Attributes
- Line Rated Current
- 100-100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA C22.2 No 27, UL listed file E22182
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 8 AWG...3/0 AWG 1 phase and neutral6 AWG...2/0 AWG 1 ground
- Mounting Mode
- plug-in
- Phase
- 3 phase
- Product Or Component Type
- plug-in unit
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire (integral ground bus)
- Height Nominal
- 216 mm
- [Ics] Rated Service Short-circuit Breaking Capacity
- 80 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Device TypeBusway & cable - LV busway
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker TypeH-frame
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typecircuit breaker
ReturnabilityNo
Trip Unit Technologyelectronic, ammeter, MicroLogic 6.2 A, LSIG
Pep CodeENVPEP1410002EN
Width Nominal551 mm
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)14.515 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1410002EN
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeplug-in unit
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
