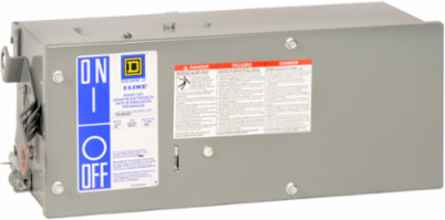

Square D PHJ36100GU44X Plug-in Unit 100A H-frame 3 Phase 600V AC MicroLogic 6.2A

MPN: PHJ36100GU44X
PPN: SCH-PHJ36100GU44X
UNSPSC: 39131702

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for robust power distribution, this plug-in unit from Schneider Electric provides efficient performance in demanding environments. With a capacity of 100A and designed for use in three-phase applications up to 600V AC, it features the advanced MicroLogic 6.2A technology, ensuring reliable operation and precise protection. Ideal for integration within busway systems, it reflects Schneider Electric's commitment to excellence in power solutions, making it a vital component for optimizing electrical infrastructures.

Documentation & Downloads

Specifications

Key Specifications

Width	551 mm
Trip Unit Technology	electronic, ammeter, MicroLogic 6.2 A, LSIG
Circuit Breaker Type	H-frame

Height	216 mm
Range Of Product	I-Line
Product Or Component Type	plug-in unit

Complementary

Line Rated Current	100-100 A
Mounting Mode	plug-in
Protection Type	circuit breaker
Width	551 mm
Phase	3 phase
Awg Gauge	AWG 8...AWG 3/0 1 phase and neutral \|\| AWG 6...AWG 2/0 1 ground
[Ics] Rated Service Short-Circuit Breaking Capacity	80 %

Height	216 mm
Poles Description	3P
Wiring Configuration	3-wire (integral ground bus)
Depth	232 mm
[Ue] Rated Operational Voltage	600 V AC
Breaking Capacity	100 kA 240 V AC \|\| 65 kA 480 V AC \|\| 25 kA 600 V AC

Environment

Product Certifications	UL listed file E22182 \|\| CSA C22.2 No 27

Standards	UL 857

Contractual warranty

Warranty	18 months

Offer Sustainability

China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1410002EN
Eu Rohs Directive	Compliant with Exemptions
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile	N/A
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
