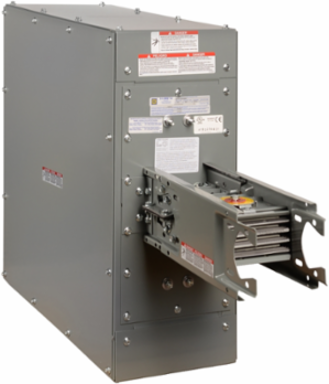

Square D AF2308GETBMB End tap box, I-Line Busway, 800A, 600VAC, 3 phase, 3 wire, integral ground bus, Al, feeder, 10ft, bolted [TAA]
- MPN: AF2308GETBMB
- UPC: 785901815747
- PPN: SCH-AF2308GETBMB
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end tap box is rated 800A, that is ideal for 3 phase, 3 wire commercial or industrial applications. As an accessory, it is designed to be used at the end of a busway run and incorporate a short section of busway into their construction. This end tap box can be used with aluminum bolted busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Complementary Attributes
- Line Rated Current
- 800-800 A aluminium
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 80 kg CO2 eq., 80.25290152794176
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 481 kg CO2 eq., 481.1637205469467
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Location
- bolt
- Phase
- 3 phase
- Product Destination
- busbar trunking 800-800 A aluminium
- Protection Type
- 50 percent capacity integral ground bus
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 3-wire
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 28 in
- Width Nominal
- 11 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908510
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]109.70753484182946, 110 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]8.941628485781397, 9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]362 kg CO2 eq., 362.33750383398126
Local Publishable Date2025-11-19
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Materialaluminium: busbar
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeend tap box
Range Of ProductI-Line
Software Versionv6.2.4
Total Lifecycle Carbon Footprint1 042 kg CO2 eq.
Pep CodeENVPEP2412020EN
Pep Verification Date2025-01-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %92
Length Total29.14 in
[Ue] Rated Operational Voltage600 V AC/DC 50/60 Hz
Package Weight(Lbs)56.246 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1042.4032892364805
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2412020EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2412020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeend tap box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
