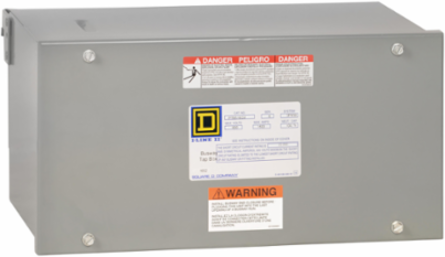

Square D PTB516GV Plug in tap box, I-Line Busway, 800A to 1600A, 600VAC, 3 phase, 4 wire, integral ground bus, Al and Cu, vertical
- MPN: PTB516GV
- UPC: 785901159384
- PPN: SCH-PTB516GV
CAD
$3540.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This plug-in tap box is rated 800A to 1600A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to be plugged into the side of the busway (at any opening except the very last opening of a run). This plug in tap box can be used with aluminum or copper busways. This unit is for vertical mounting. This plug in tap box meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 800-1600 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 235.34035699940836, 235 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 19.181235300143967, 19 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 526 kg CO2 eq., 525.670990018211
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mounting Mode
- vertical
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Type
- 50 percent capacity integral ground bus
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 28.2 in
- Width Nominal
- 24 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]172 kg CO2 eq., 172.15541779381056
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 032 kg CO2 eq., 1032.173787624902
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge1/0 AWG...600 kcmil
Phase3 phase
Product Or Component Typetap box
Range Of ProductI-Line
Software Versionv6.2.4
Total Lifecycle Carbon Footprint1 985 kg CO2 eq.
Pep CodeENVPEP2412020EN
Pep Verification Date2025-01-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %92
Length Total23.5 in
[Ue] Rated Operational Voltage600 V AC/DC 50/60 Hz
Package Weight(Lbs)120.656 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1984.5217877364757
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2412020EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2412020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typetap box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
