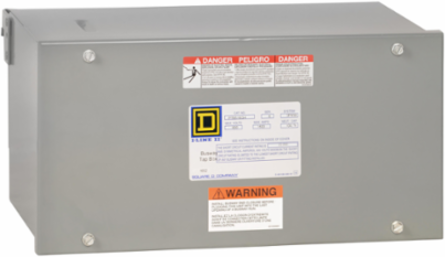

Square D PTB516GH Plug in tap box, I-Line Busway, 800A to 1600A, 600VAC, 3 phase, 4 wire, integral ground bus, Al and Cu, horizontal
- MPN: PTB516GH
- UPC: 785901087434
- PPN: SCH-PTB516GH
CAD
$3540.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This plug-in tap box is rated 800A to 1600A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to be plugged into the side of the busway (at any opening except the very last opening of a run). This plug in tap box can be used with aluminum or copper busways. This unit is for horizontal mounting. This plug in tap box meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 800-1600 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 235.34035699940836, 235 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 19.181235300143967, 19 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 526 kg CO2 eq., 525.670990018211
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 1/0 AWG...600 kcmil
- Mounting Mode
- horizontal
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Type
- 50 percent capacity integral ground bus
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2412020EN
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 92
- Length Total
- 23.5 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 120.656 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]172 kg CO2 eq., 172.15541779381056
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 032 kg CO2 eq., 1032.173787624902
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Phase3 phase
Product Or Component Typetap box
Range Of ProductI-Line
Software Versionv6.2.4
Total Lifecycle Carbon Footprint1 985 kg CO2 eq.
Wiring Configuration4-wire
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Height Nominal28.2 in
Width Nominal24 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908510
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1984.5217877364757
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2412020EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2412020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typetap box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
