Schneider Electric K1F013NZ4 Cam stepping switch, Harmony K, screw mounting, plastic, 2 poles, 3 steps marked 1/2/3, 60°, 12A, black handle, key operated lock

Cam stepping switch, Harmony K, screw mounting, plastic, 2 poles, 3 steps marked 1/2/3, 60°, 12A, black handle, key operated lock

MPN: K1F013NZ4
PPN: SCH-K1F013NZ4

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$496.14/ EA

Qty:

Loading add to cart quantity...

Description

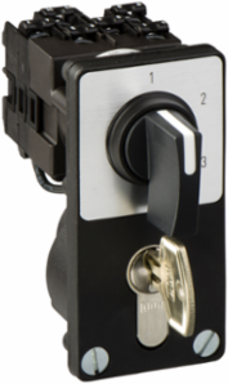

Cam stepping switch, Harmony K, screw mounting, plastic, 2 poles, 3 steps marked 1/2/3, 60°, 12A, black handle, key operated lock

Specifications

Environment

Ambient Air Temperature For Operation: -25-55 °C

Product Certifications: CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phases 2 || UL 240 V 1 hp 3 phases || UL 240 V 0.33 hp 1 phase 2

Standards: CENELEC EN 50013 || EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit

Electrical Shock Protection Class: class II IEC 536 || class II NF C 20-030

Shock Resistance30 gn IEC 68-2-27

Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

Short-Circuit Protection: 16 A cartridge fuse gG

[Ithe] Conventional Enclosed Thermal Current: 10 A

[Uimp] Rated Impulse Withstand Voltage: 4 kV in isolating function || 6 kV IEC 60947-1

Switching Angle: 60 °

Electrical Durability: 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3

Short-Circuit Current: 10000 A

Positive Opening: with

Mechanical Durability: 1000000 cycles

Cad Overall Depth: 73 mm

[Ie] Rated Operational Current Ac: 1 A 500 V AC-15 IEC 60947-5-1 || 4.8 A 400 V AC-23A 3 phases IEC 60947-3 || 5.6 A 230 V AC-23A 3 phases IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 1.8 A 690 V AC-3 3 phases IEC 60947-3 || 2.8 A 500 V AC-3 3 phases IEC 60947-3 || 2.8 A 690 V AC-23A 3 phases IEC 60947-3 || 3.3 A 400 V AC-3 3 phases IEC 60947-3 || 3.8 A 500 V AC-23A 3 phases IEC 60947-3 || 4.6 A 230 V AC-3 3 phases IEC 60947-3

Number Of Steps3

Net Weight0.17 kg

Cad Overall Height100 mm

Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²

Maximum Operating Rate2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15

[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1

Contact Operationslow-break

Cad Overall Width55 mm

Rated Operational Power In W10500 W AC-21, 500...660 V 3 phases IEC 60947-3 || 2200 W AC-23A, 690 V 3 phases IEC 60947-3 || 4800 W AC-21, 230 V 3 phases IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phases IEC 60947-3 || 1100 W AC-3, 230 V 3 phases IEC 60947-3 || 1500 W AC-23A, 230 V 3 phases IEC 60947-3 || 1500 W AC-3, 400 V 1 phase IEC 60947-3 || 1500 W AC-3, 400 V 3 phases IEC 60947-3 || 1500 W AC-3, 500 V 3 phases IEC 60947-3 || 1500 W AC-3, 690 V 3 phases IEC 60947-3 || 2200 W AC-23A, 400 V 3 phases IEC 60947-3 || 2200 W AC-23A, 500 V 3 phases IEC 60947-3

Specifications

Range Of Product: Harmony K

Presentation Of Legend: with metallic, 1 - 2 - 3 black

Product Or Component Type: complete cam switch

Cam Switch Function: stepping switch

Type Of Operator: black handle

Cam Switch Head Type: with front plate 55 x 100 mm

Poles Description: 2P

Return: without

Fixing Mode6 screws Ø 5.2 mm

Ip Degree Of ProtectionIP40 conforming to IEC 529 || IP40 conforming to NF C 20-010

[Ith] Conventional Free Air Thermal Current12 A

Component NameK1

Switching Positionsright: 0° - 60° - 120°

Product Mountingfront mounting

Rotary Handle Padlockingwith

Off Positionwithout Off position
