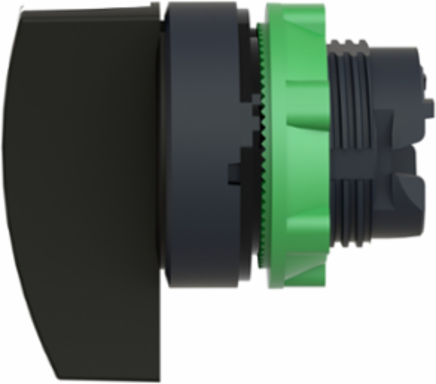

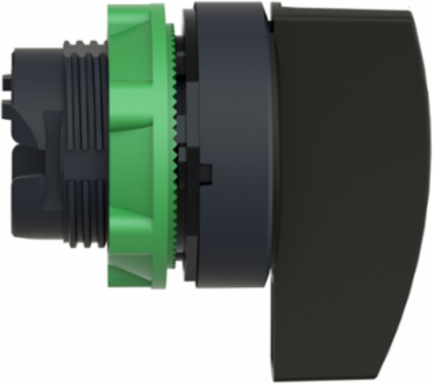

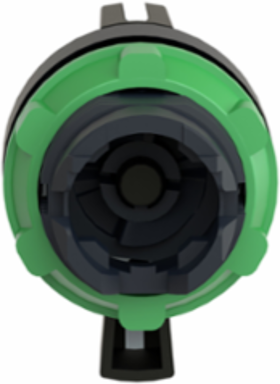

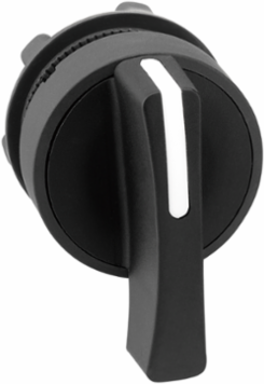

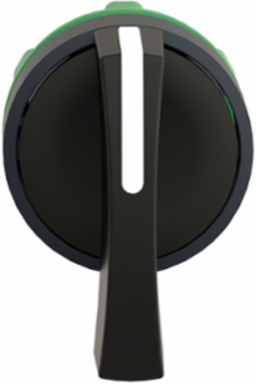

Schneider Electric ZB5AJ3 Harmony XB5 Selector Switch Head, 22mm, Long Handle, 3 Positions, IP69K
Schneider Electric ZB5AJ3 Harmony XB5 Selector Switch Head, 22mm, Long Handle, 3 Positions, IP69K
- MPN: ZB5AJ3
- PPN: SCH-ZB5AJ3
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$25.49/ EA
Description
This Harmony XB5, black head with long handle for selector switch has 3 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
- Number of Positions
- 3 positions +/- 45°
- Mechanical Durability
- 1,000,000 cycles
- Vibration Resistance
- 5 gn (2 to 500 Hz)
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Dimensions Width x Height x Depth
- 29 mm x 38 mm x 46 mm (1.14 in x 1.50 in x 1.81 in)
- Bezel Material
- Dark grey plastic
- Operator Profile
- Black long handle
- Shape of Signaling Unit Head
- Round
- NEMA Degree of Protection
- NEMA 13, NEMA 4X
- Resistance to High Pressure Washer
- 7,000,000 Pa (1015.26 psi) at 55 °C (131 °F) 0.1 m
- Product Certifications
- UL Listed, CSA, DNV, BV, Lloyds Register of Shipping (GL), REACh Free of SVHC, RoHS Compliant, Mercury Free, Toxic Heavy Metal Free
- Series
- Harmony XB5
Overvoltage CategoryClass II IEC 60536
Shock Resistance30 gn 18 ms, 50 gn 11 ms (half sine wave acceleration)
Ambient Air Temperature for Operation-40 to 70 °C (-40 to 158 °F)
Mounting Diameter22 mm (0.87 in)
Net Weight0.017 kg (0.04 lb)
Operator TypeStay put, non padlockable
Head TypeStandard
IP Degree of ProtectionIP67, IP69, IP69K IEC 60529
IK Degree of ProtectionIK06 IEC 50102
StandardsUL 508, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1
Country of OriginFrance
