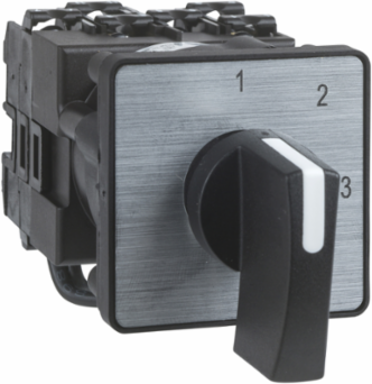

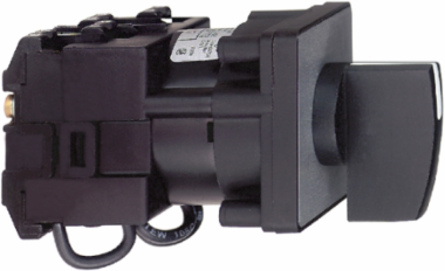

Schneider Electric K2B1002HLH Harmony K Cam Switch, 2 Pole, 20A, 45mm x 45mm, 90 Switching
- MPN: K2B1002HLH
- PPN: SCH-K2B1002HLH
CAD
$48.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rotary cam switches are a versatile means of providing inexpensive logic control. Cam switches can have up to 12 switching positions and up to 20 contacts. They can have custom or custom configured sequences. This complete cam switch has 90 degree switching between two positions. Cam switch has 4 poles that all switch from O (all 4 contacts are open) to I (all 4 contacts are closed). Contact have a 12A gerenal purpose rating by UL at 300V maximum. Contacts have three phase ratings of 1.5 HP at 120 VAC, 2 HP at 200-208 VAC and 3 HP at 240VAC. Contacts also have single phase ratings of 0.5 HP at 120 VAC, 1 HP at 200-208 VAC and 1 HP at 240VAC. Cam switch is mounted to a panel cover using a 45mm x 45mm front plate that has a 1.28 inch black handle. Cam switch is 1.77 inches tall, 1.77 inches wide and 3.03 inches deep. The switch weighs 0.29 lbs. Switch are IP65 rated. This cam switch is UL Listed (E164864, NLRV)and CSA certified (025490_S_000, 3211-05. "It supports front mounting method with multi fixing." "Modular rotary cam switches from 10A to 150A with plastic or metal heads meet most industrial applications."
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Cad Overall Depth
- 77 mm
- Cad Overall Width
- 45 mm
Cad Overall Height45 mm
Complementary Attributes
- Maximum Operating Rate
- 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-38.333 cyc/mn AC-15
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 200000 cycles AC-23, 200000 cycles AC-3600000 cycles AC-15, 600000 cycles AC-21
- Certificate Agency
- UL 240 V 1 hp 3 phase, CSA 240 V 3 hp 3 phase 2, UL 240 V 0.33 hp 1 phase 2, CSA 240 V 1 hp 1 phase, CCC
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cam Switch Head Type
- with front plate 45 x 45 mm
- Component Name
- K2
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm²captive screw clamp terminals solid 1 x 2.5 mm²
- Mechanical Durability
- 1000000 cycles
- Number Of Poles
- 2P
- Positive Opening
- with
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Returnability
- Yes
- Shock Resistance
- 30 gn IEC 68-2-27
- Switching Angle
- 90 °
- Type Of Operator
- Black handle 35 mm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current
- 20 A
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
- Short-circuit Current
- 10000 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Overvoltage Categoryclass II conforming to IEC 536, class II conforming to NF C 20-030
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cam Switch Functionswitch
Compatibility CodeK2B
Contact Operationslow-break
Fixing Modemultifixing
Mounting Locationfront
Off Positionwith Off position
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
Returnwithout
Rotary Handle Padlockingwithout
Sustainable PackagingNo
Switching Positionsright: 0° - 90°
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Pep CodeENVPEP2312055EN
[Ithe] Conventional Enclosed Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function6 kV IEC 60947-1
Short-circuit Protection20 A cartridge fuse gG
Package Weight(Lbs)142.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2312055EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2312055EN
