Schneider Electric ZA2BD5 Harmony XAC Selector Switch, 22mm, 3 Positions, Black Handle
- MPN: ZA2BD5
- PPN: SCH-ZA2BD5
CAD
$31.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

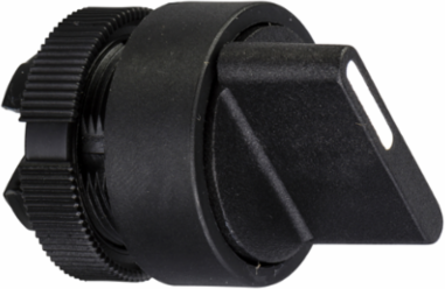

This Harmony ZA2BD5 is a selector switch head, 3 positions diameter 22mm, black. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Features
- This 22mm selector switch features a 90 throw with a maintained position mechanism, meaning it stays in the selected state until manually turned back. This is the ideal solution for "Hand-Off-Auto" or "On/Off" control circuits where you need to ensure the machine state doesn't change accidentally due to vibration or momentary power loss.
- Designed for the industry-standard 22mm cutout, the ZA2BD5 is fully compatible with the Schneider Electric Harmony XAC series pendant stations and XAL control boxes. This allows for seamless retrofitting or repairs of legacy equipment without the need for drilling new holes or replacing the entire enclosure.
- This component is the operator head only, giving you the flexibility to snap on any combination of NO (Normally Open) or NC (Normally Closed) contact blocks required for your logic. It simplifies inventory management by allowing you to pair one rugged actuator with various electrical configurations depending on the specific machine application.
- Built to withstand harsh environments, this selector switch maintains an IP65 rating when properly installed, protecting internal electrical components from dust, oil, and low-pressure water jets. It ensures reliable switching performance in food processing, automotive plants, and outdoor control panels where environmental exposure is a constant threat.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | IEC 60204-32, UL 508, IEC 60947-5-1, CSA C22.2 No 14 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0163450128 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.1126879795 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308017EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Component Name | ZA2 |
| Overvoltage Category | class II conforming to IEC 61140 |
| Product Or Component Type | selector switch |
| Returnability | Yes |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This selector switch comes with a standard handle. It has 3 operating positions and operates with a stay-put mechanism. This selector switch provides a versatile interface for controlling machines. It has 2 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel.This switch primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; CN |
| Recyclability Potential In % | 84 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0073331202, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0007403133, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Marking | unmarked |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Sale Per Indivisible Quantity | 1 |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Pep Code | ENVPEP2308017EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; CN |
| Cap/Operator Or Lens Colour | black |
| Package Weight(Lbs) | 21.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.1371064258 |
| Environmental Disclosure | ENVPEP2308017EN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308017EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | XACA |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | selector switch |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000222 |
|---|
| ETIM 9 | EC000222 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
