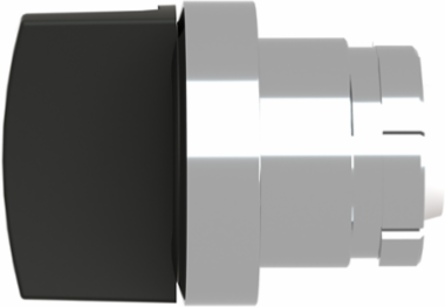

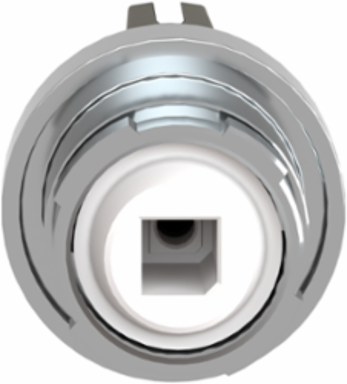

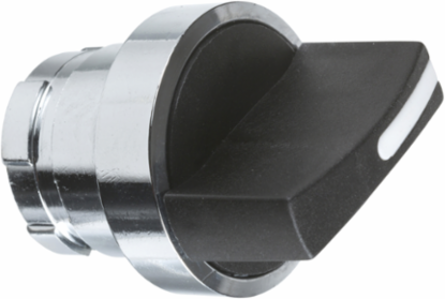

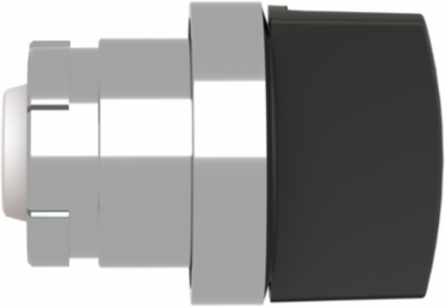

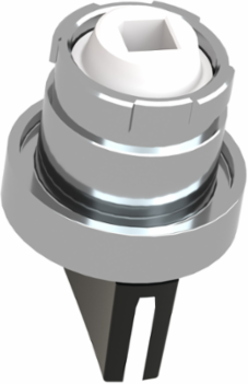

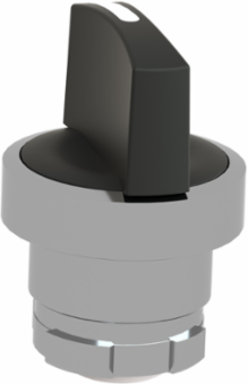

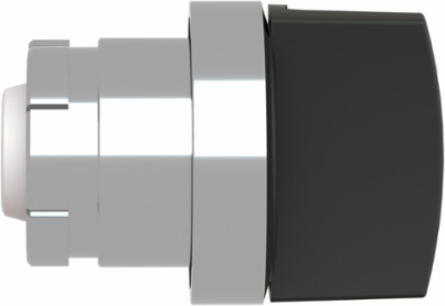

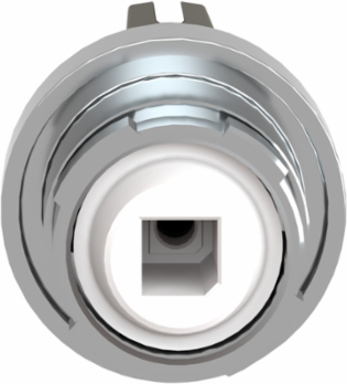

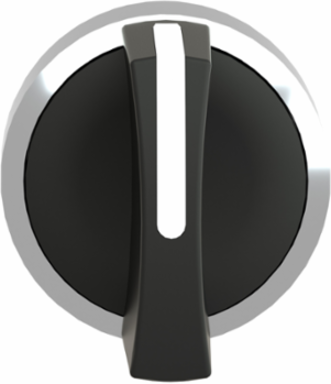

Schneider Electric KAXZ1M12 Harmony K Cam Switch Operating Head 29mm Metal, IP65, Black Handle

MPN: KAXZ1M12
PPN: SCH-KAXZ1M12
UNSPSC: 39122221

$29.46

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Schneider Electric Harmony K operating headis designed to fit in a 28.5mm diameter hole. This operating head is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16 millimeter and 22 millimeter diameter units and has several selection functions. Simple and modular design to allow for easy installation. Designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery. Sturdy plastic body resistant (strength) to shocks and corrosion. IP65 on its front part allow for installation in harsh (heavy) environment or outdoor. It weighs 40g.

Features

It is impact resistant, dust resistant, water resistant
Complies with RoHS and REACh directives relating to environmental protection
It is compatible with 12A and 20A by 22mm front mounting bodies
Wide availability throughout an extensive distribution network

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, Mexico

Weight	36 g

Physical Attributes

Cad Overall Depth	25 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase A4	0.0043199702, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0147156683, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cam Switch Head Type	with bezel Ø 28.5 mm, metal
Component Name	KAX
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shock Resistance	30 gn IEC 68-2-27
Sustainable Packaging	No
Type Of Operator	Black standard handle
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.0614948208
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.224673096
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	KAX
Mechanical Durability	1000000 cycles
Product Or Component Type	cam switch operating head
Range Of Product	Harmony Series K
Rotary Handle Padlocking	without
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Vibration Resistance	5 gn 10-150 Hz)IEC 68-2-6
Data Source	extrapolated product
Customs Code	8538908180
Functional Unit Description	K1 voltmeter switch is ideal for switching between phase-phase and phase-neutral voltage measurements on a switchboard, has a rated voltage of 690V AC. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class, for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.

Environment Attributes Main

Ambient Air Temperature For Operation	-25-55 °C, -25-55 °C
Ip Degree Of Protection	IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312055EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	front mounting bodies 12 and 20 A Ø 22 mm hole
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.3052035554
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312055EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
