Schneider Electric K2C003H Cam switch body, Harmony K, Ø 22mm, plastic, 3 pole, with 0 position, 90°, 20A
Schneider Electric K2C003H Cam switch body, Harmony K, Ø 22mm, plastic, 3 pole, with 0 position, 90°, 20A
- MPN: K2C003H
- PPN: SCH-K2C003H
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$53.98/ EA
Description

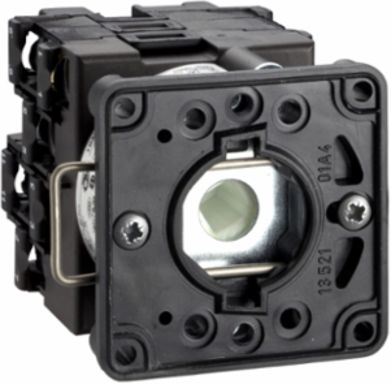

Cam switch body, Harmony K, Ø 22mm, plastic, 3 pole, with 0 position, 90°, 20A
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
- Overvoltage Category
- class II IEC 536 || class II NF C 20-030
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 3 hp 3 phases 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071103EN_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Net Weight
- 0.105 kg
- Switching Angle
- 90 °
- Electrical Durability
- 200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21
- Short-Circuit Current
- 10000 A
- Positive Opening
- with
- Mechanical Durability
- 1000000 cycles
- [Ie] Rated Operational Current Ac
- 8 A 400 V AC-3 3 phases IEC 947-3 || 10.8 A 400 V AC-23A 3 phases IEC 947-3 || 14.6 A 230 V AC-23A 3 phases IEC 947-3 || 4.7 A 690 V AC-3 3 phases IEC 947-3 || 6.4 A 690 V AC-23A 3 phases IEC 947-3 || 6.5 A 500 V AC-3 3 phases IEC 947-3 || 8.3 A 230 V AC-3 3 phases IEC 947-3 || 8.9 A 500 V AC-23A 3 phases IEC 947-3 || 2 A 500 V AC-15 IEC 947-5-1 || 3 A 400 V AC-15 IEC 947-5-1 || 4 A 230 V AC-15 IEC 947-5-1
[Ithe] Conventional Enclosed Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function || 6 kV IEC 947-1
Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
Maximum Operating Rate2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Contact Operationslow-break
Rated Operational Power In W1300 W AC-3, 230 V 1 phase IEC 947-3 || 14000 W AC-21, 400 V 3 phases IEC 947-3 || 17000 W AC-21, 500 - 660 V 3 phases IEC 947-3 || 2200 W AC-3, 230 V 3 phases IEC 947-3 || 2200 W AC-3, 400 V 1 phase IEC 947-3 || 4000 W AC-23A, 230 V 3 phases IEC 947-3 || 4000 W AC-3, 400 V 3 phases IEC 947-3 || 4000 W AC-3, 500 V 3 phases IEC 947-3 || 4000 W AC-3, 690 V 3 phases IEC 947-3 || 5500 W AC-23A, 400 V 3 phases IEC 947-3 || 5500 W AC-23A, 500 V 3 phases IEC 947-3 || 5500 W AC-23A, 690 V 3 phases IEC 947-3 || 8000 W AC-21, 230 V 3 phases IEC 947-3
Specifications
- Range Of Product
- Harmony K
- Sub-Assembly Composition
- contact blocks + fixing plate
- [Ith] Conventional Free Air Thermal Current
- 20 A
- Component Name
- K2
- Switching Positions
- right: 0° - 90°
- Poles Description
- 3P
Fixing ModeØ 22 mm hole
Product Or Component Typecam switch body
Cam Switch Functionswitch
Mounting Locationfront
Bezel Materialplastic
Off Positionwith Off position
