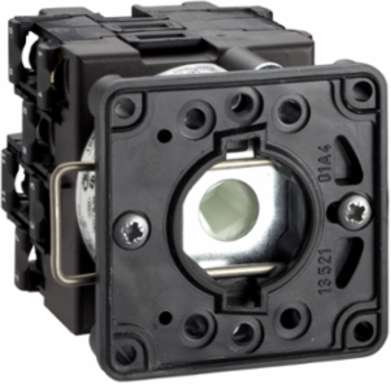

Schneider Electric K1D011B Cam switch body for BCD encoded withoutput switch, Harmony K, Ø 22mm, plastic, 1 pole, 11 positions, 45°, 12A

MPN: K1D011B
PPN: SCH-K1D011B

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$79.28/ EA

Qty:

Loading add to cart quantity...

Description

Cam switch body for BCD encoded withoutput switch, Harmony K, Ø 22mm, plastic, 1 pole, 11 positions, 45°, 12A

Specifications

Environment

Ambient Air Temperature For Operation: -25-55 °C

Shock Resistance: 30 gn IEC 68-2-27

Standards: IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013

Overvoltage Category: class II IEC 536 || class II NF C 20-030

Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6

Product CertificationsCSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phases 2 || UL 240 V 1 hp 3 phases || UL 240 V 0.33 hp 1 phase 2

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP071103EN_V1

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

Short-Circuit Protection: 16 A cartridge fuse gG

Net Weight: 0.11 kg

Number Of Decimal: 11

Electrical Connection: captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²

Maximum Operating Rate: 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15

[Ui] Rated Insulation Voltage: 690 V 3)IEC 60947-1

Contact Operation: slow-break

Rated Operational Power In W: 10500 W AC-21, 500 - 660 V 3 phases IEC 947-3 || 1100 W AC-3, 230 V 3 phases IEC 947-3 || 1500 W AC-23A, 230 V 3 phases IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phases IEC 947-3 || 1500 W AC-3, 500 V 3 phases IEC 947-3 || 1500 W AC-3, 690 V 3 phases IEC 947-3 || 2200 W AC-23A, 400 V 3 phases IEC 947-3 || 2200 W AC-23A, 500 V 3 phases IEC 947-3 || 2200 W AC-23A, 690 V 3 phases IEC 947-3 || 4800 W AC-21, 230 V 3 phases IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phases IEC 947-3

[Ithe] Conventional Enclosed Thermal Current10 A

[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function || 6 kV IEC 947-1

Switching Angle30 °

Electrical Durability1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3

Short-Circuit Current10000 A

Positive Openingwith

Mechanical Durability1000000 cycles

[Ie] Rated Operational Current Ac1.8 A 690 V AC-3 3 phases IEC 947-3 || 2.8 A 500 V AC-3 3 phases IEC 947-3 || 2.8 A 690 V AC-23A 3 phases IEC 947-3 || 3.3 A 400 V AC-3 3 phases IEC 947-3 || 3.8 A 500 V AC-23A 3 phases IEC 947-3 || 4.6 A 230 V AC-3 3 phases IEC 947-3 || 4.8 A 400 V AC-23A 3 phases IEC 947-3 || 5.6 A 230 V AC-23A 3 phases IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1

Specifications

Range Of Product: Harmony K

Sub-Assembly Composition: contact blocks + fixing plate

[Ith] Conventional Free Air Thermal Current: 12 A

Component Name: K1

Switching Positions: right: 0°-30°-60°-90°-120°-150°-180°-210°-240°-270°-300°-330°

Off Position: with Off position

Fixing ModeØ 22 mm hole

Product Or Component Typecam switch body

Cam Switch FunctionBCD encoded output switch

Mounting Locationfront

Bezel Materialplastic
