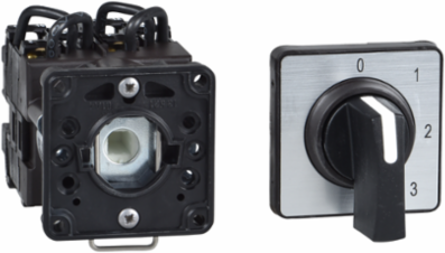

Schneider Electric K2D002UCH Harmony K Cam Changeover Switch 22mm, 20A, IP65, 2 Poles
- MPN: K2D002UCH
- PPN: SCH-K2D002UCH
CAD
$88.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Harmony K Cam Changeover Switch from Schneider Electric is expertly designed for seamless operation in various automation and control applications. With a robust current rating of 20A and constructed to meet IP65 standards, this switch guarantees effective performance while being resistant to dust and water ingress. It features two poles, making it suitable for diverse switching needs, whether in industrial settings or intricate machinery. This reliable component is essential for ensuring smooth transitions and control in your systems, reflecting Schneider Electric's commitment to quality and innovation in electrical solutions.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Conventional Enclosed Thermal Current
- 16 A
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Electrical Durability
- 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21
- Operating Temperature
- -25 to 55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Electrical Shock Protection Class
- Class II IEC 536
- Switching Positions
- Right: 0° - 45°, Left: 0° - 315°
- Mounting Hole Diameter
- 22 mm
- Handle Diameter
- 35 mm
- Cad Overall Width
- 45 mm
- Net Weight
- 0.16 kg
- Range Of Product
- Harmony K
- Type Of Operator
- Black handle 35 mm
- Maximum Operating Rate
- 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15
- Contact Operation
- Slow-break
- Positive Opening
- With
- Product Certifications
- CSA, UL
- Standards
- IEC 60947-3, IEC 60947-5-1, EN 50013
- Warranty
- 18 months
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure
- ENVPEP071103EN_V1
- Circularity Profile
- N/A
Short-Circuit Current10000 A
Short-Circuit Protection20 A cartridge fuse gG
Impulse Withstand Voltage4 kV isolating, 6 kV IEC 947-1
Mechanical Durability1000000 cycles
Storage Temperature-40 to 70 °C
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Poles2P
IP Degree of ProtectionIP65 IEC 60529
Cam Switch Head Size45 x 45 mm
Cad Overall Depth59 mm
Cad Overall Height50 mm
Electrical ConnectionCaptive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
Component NameK2
Off PositionWith Off position
Product MountingFront mounting
Cam Switch FunctionChangeover switch
Presentation Of LegendMetallic, 2 - 0 - 1 black
Protective TreatmentTC
Fixing ModeØ 22 mm hole
Reach Free Of SvhcYes
Toxic Heavy Metal FreeYes
China Rohs RegulationX
Reach RegulationFree of Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
WeeeMust be disposed in EU according to waste collection
