Schneider Electric K1F003MCH Cam Ammeter Switch, 22mm, 12A, 45x45mm, IP65, 3 Positions
Schneider Electric K1F003MCH Cam Ammeter Switch, 22mm, 12A, 45x45mm, IP65, 3 Positions
- MPN: K1F003MCH
- PPN: SCH-K1F003MCH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$108.66/ EA
Description

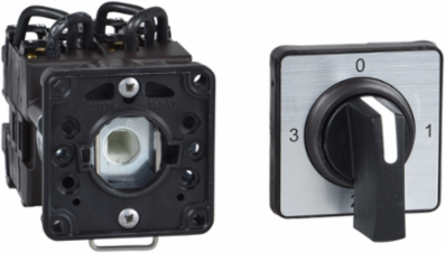

This K1 ammeter switch is ideal for switching between phase current measurements on a switchboard, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs in a 22mm hole. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- CENELEC EN 50013 || EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit
- Electrical Shock Protection Class
- class II IEC 536 || class II NF C 20-030
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phases 2 || UL 240 V 1 hp 3 phases || UL 240 V 0.33 hp 1 phase 2
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071103EN_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Short-Circuit Protection
- 16 A cartridge fuse gG
- Net Weight
- 0.19 kg
- Cad Overall Height
- 50 mm
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
- Maximum Operating Rate
- 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
- Contact Operation
- slow-break
- Cad Overall Width
- 45 mm
- Rated Operational Power In W
- 10500 W AC-21, 500...660 V 3 phases IEC 60947-3 || 2200 W AC-23A, 690 V 3 phases IEC 60947-3 || 4800 W AC-21, 230 V 3 phases IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phases IEC 60947-3 || 1100 W AC-3, 230 V 3 phases IEC 60947-3 || 1500 W AC-23A, 230 V 3 phases IEC 60947-3 || 1500 W AC-3, 400 V 1 phase IEC 60947-3 || 1500 W AC-3, 400 V 3 phases IEC 60947-3 || 1500 W AC-3, 500 V 3 phases IEC 60947-3 || 1500 W AC-3, 690 V 3 phases IEC 60947-3 || 2200 W AC-23A, 400 V 3 phases IEC 60947-3 || 2200 W AC-23A, 500 V 3 phases IEC 60947-3
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function || 6 kV IEC 60947-1
Switching Angle90 °
Electrical Durability1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
Short-Circuit Current10000 A
Positive Openingwith
Mechanical Durability1000000 cycles
Cad Overall Depth69 mm
[Ie] Rated Operational Current Ac1 A 500 V AC-15 IEC 60947-5-1 || 4.8 A 400 V AC-23A 3 phases IEC 60947-3 || 5.6 A 230 V AC-23A 3 phases IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 1.8 A 690 V AC-3 3 phases IEC 60947-3 || 2.8 A 500 V AC-3 3 phases IEC 60947-3 || 2.8 A 690 V AC-23A 3 phases IEC 60947-3 || 3.3 A 400 V AC-3 3 phases IEC 60947-3 || 3.8 A 500 V AC-23A 3 phases IEC 60947-3 || 4.6 A 230 V AC-3 3 phases IEC 60947-3
Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 0 - L1 - L2 - L3 black
- Ip Degree Of Protection
- IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Component Name
- K1
- Switching Positions
- right: 0° - 90° - 180° - 270°
- Product Mounting
- front mounting
- Return
- without
Fixing ModeØ 22 mm hole
Type Of Measurementfor 3 circuits
Product Or Component Typecomplete cam switch
Cam Switch Functionammeter switch
Type Of Operatorblack handle 35 mm
Cam Switch Head Typewith front plate 45 x 45 mm
Rotary Handle Padlockingwithout
Off Positionwith Off position
