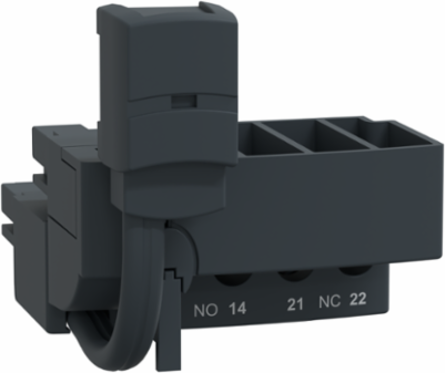

Schneider Electric LU9BN11L Pre-wired connection, Tesys Ultra, coil to communication module, Profibus, for LUB

Pre-wired connection, Tesys Ultra, coil to communication module, Profibus, for LUB
  • MPN: LU9BN11L
  • PPN: SCH-LU9BN11L

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$107.83/ EA

Description

TeSys U control terminal block to be inserted in power bases LUB120, LUB320, LUB380 for the centralized control of a starter controller. To be used for ON/OFF control of one direction motor applications with Profibus DP, CANopen, DeviceNet, Advantys STB remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LULC07, LULC08, LULC09, LULC15 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).

Specifications

Complementary

Bus Type
Advantys STB || DeviceNet || CANopen || Profibus DP
Net Weight0.05 kg

Specifications

Product Or Component Type
pre-wired coil connection
Device Short Name
LU9B
Product CompatibilityLUB..
RangeTeSys

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP111254EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
