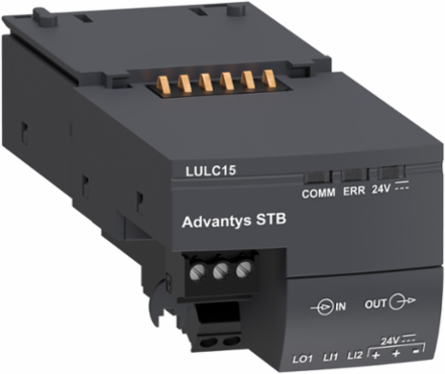

Schneider Electric LULC15 TeSys Ultra Communication Module 24V DC, 500mA, Front Side
- MPN: LULC15
- PPN: SCH-LULC15
CAD
$747.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | CAN2.B, CAN2.0A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Response Time | 10 ms +/- 30 % change to state 0, 10 ms +/- 30 % change to state 1 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Associated Cable Type | AWG 26...AWG 16 |
| Cable Connector Type | fire wire |
| Connection Pitch | 3.81 mm |
| Device Application | communication |
| Energy Efficiency Optimized | False |
| Local Signalling | 3 LEDs front panel |
| Mounting Mode | plug-in |
| Product Or Component Type | communication module |
| Range Of Product | TeSys U |
| Sustainable Packaging | Yes |
| Tightening Torque | 0.2-0.25 N.m2.5 mm |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 106.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Connections - Terminals | screw clamp terminals 1 0.25-1 mm²flexible with cable endscrew clamp terminals 2 0.14-0.75 mm²flexible without cable end, screw clamp terminals 2 0.25-0.34 mm²flexible with cable end, screw clamp terminals 1 0.14-1 mm²flexible without cable end, screw clamp terminals 1 0.14-1 mm²rigid without cable endscrew clamp terminals 1 0.25-0.5 mm²flexible with cable end, screw clamp terminals 2 0.14-0.5 mm²rigid without cable end, screw clamp terminals 2 0.5-0.5 mm²flexible with cable end |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2025 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Addressing | self-addressing |
| Bus Type | Advantys STB |
| Compatibility Code | LUL |
| Current Consumption | 1.5 mA 24 V DC 20...28 V |
| Device Short Name | LUL |
| Function Available | communication module |
| Mounting Location | front side |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Switching Current Capacity | 0.5 mA 24 V |
| Transmission Rate | 800 kbit/s |
| [Us] Rated Supply Voltage | 24 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-55 °C, -25-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | LUCC, LUCA, LUCL, LUCM, LUCB, LUCD |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | communication module |
|---|
| Range Of Product | TeSys U |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Output Attributes
| Number Of Outputs | 2 dedicated to starter-controller coil operation, 1 |
|---|
| Output Current | <= 500 mA, <= 500 mA |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Type | resistive |
|---|---|
| Switching Current Capacity | 0.5 mA 24 V |
| Logic Input | positive 24 V DC - 7 mA |
|---|
