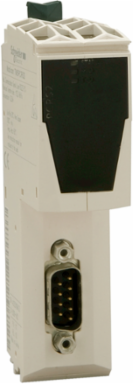

Schneider Electric TM5PCDPS Profibus DP Communication Module, 1 Isolated Serial Link, IP20
- MPN: TM5PCDPS
- PPN: SCH-TM5PCDPS
CAD
$806.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. It is a Profibus DP communication module for Modicon M258 controllers. It ensures the communication on Profibus bus of M258 controllers monitoring decentralized sensors. This is a communication module designed for creating distributed IO islands on Profibus DP bus. This optional communication module is inserted in two free PCI slots located on M258 logic controllers. It has 1 isolated serial link, female SUB-D 9 connector (RS485), with a 12 Mbit/s data transmission rate. It weighs 0.064kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM258LD42DT4L, TM258LF42DT4L, TM258LF42DR and TM258LF66DT4L logic controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.026438838286299466, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 81 kg CO2 eq., 80.67675928977035
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Number Of Hw Interfaces Serial Rs485
- 1
- Product Or Component Type
- Profibus DP communication module
- Returnability
- No
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 99 kg CO2 eq.
- Pep Code
- ENVPEP1511025EN
- Pep Verification Date
- 2025-10-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 99 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.09823340461163584
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.98207585221228
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511025EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
MarkingCE
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon TM5
Shock Resistance15 gn 11 ms
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 2W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh175.2
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal37.5 mm
Package Weight(Lbs)64.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 98.78350738488056
- Environmental Disclosure
- ENVPEP1511025EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1511025EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilitymotion controller, logic controller
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1511025EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-10-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Profibus DP communication module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
