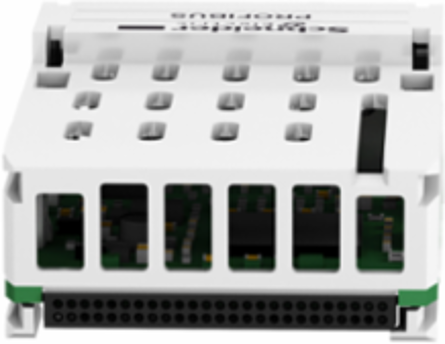

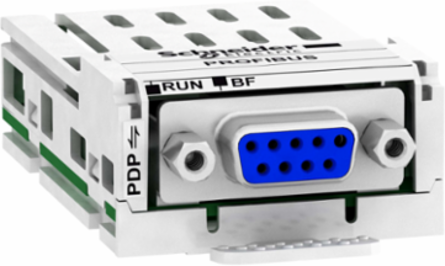

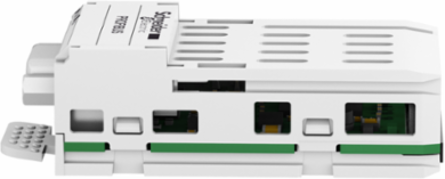

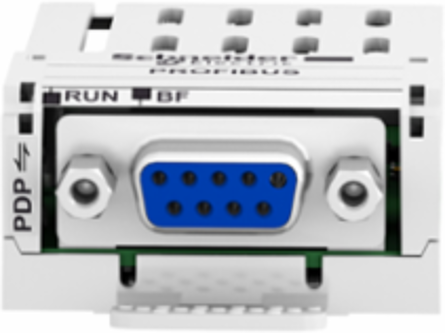

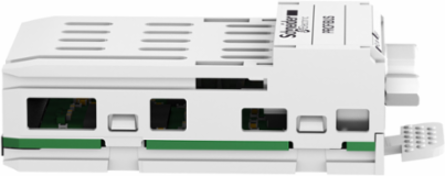

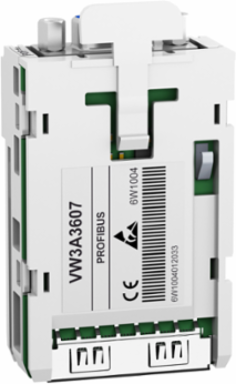

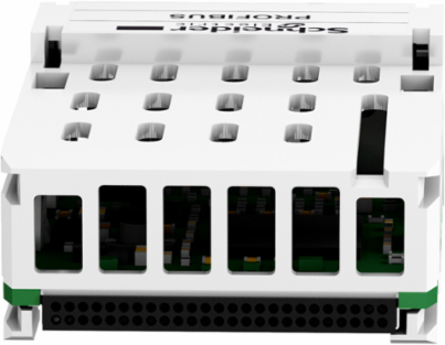

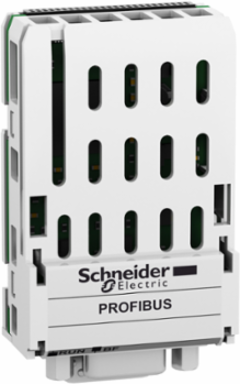

Schneider Electric VW3A3607 Profibus DP V1 Communication Module 12Mbps 1 Female SUB-D Connector

MPN: VW3A3607
PPN: SCH-VW3A3607
UNSPSC: 26111515

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$421.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Schneider Electric Altivar Profibus DP communication module has 1 x 9-way female SUB-D connector. It complies with PROFIBUS DP V1 standard. This communication module enables integration of your drive in your Profibus process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Lexium 32, Altivar Easy 610, Altivar 32, Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 140g.

Features

Connect drives easily to PROFIBUS DP V1 networks for efficient process control
9-way SUB-D connector ensures secure, standardized communication
Enables real-time data exchange for optimized industrial performance
Optional for variable speed drives, ensuring easy system adaptation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, United States

Weight	61 g

Communications & Management Attributes

Alarm Function	diagnostic data with VSD status, host drive handled from two masters (MS0 and MS1), standard identification and maintenance requests
Communication Port Protocol	Profibus DP V1

Communication Service	4 configurable telegrams, mapping of the process data from the master, parameters management compliant with PROFIdrive V4.1, several DP V1 messaging modesdrive profile native ATV32 IEC 61800-7-201 (CiA 402)

Important Information Attributes

Persona Type Ids	EU, OM
Addressing	1...126 configurable by graphic terminal/SoMove software, configuration settings
Display Type	1 LED RUN, 1 LED bus fault (BF)
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0240874205
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.8636686985
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Use Carbon Footprint	102.28
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Altivar
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	104 kg CO2 eq.
Database Version	2018-11
Certificate Agency	IEC 61800-7-201 (CiA 402)
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Original Equipment Manufacturer
Bus Profile	PROFIdrive, CiA 402
Carbon Footprint Of The Distribution Phase A4	0.0078704669, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0027649193, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	102 kg CO2 eq., 102.28
Local Publishable Date	2026-03-26
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	1 female connector SUB-D 9
Product Or Component Type	communication module
Returnability	Yes
Sustainable Packaging	No
Transmission Rate	9.6 kbps...12 Mbps
Data Source	extrapolated product
Accessory / Separate Part Category	communication accessories
Customs Code	8517620090
Functional Unit Description	To adapt the variable speed drive to specific applications. Calculation of the environmental impact is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	219

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	104.1783915051
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2020-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2010009EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Lexium 32M
Pep Code	ENVPEP2010009EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
